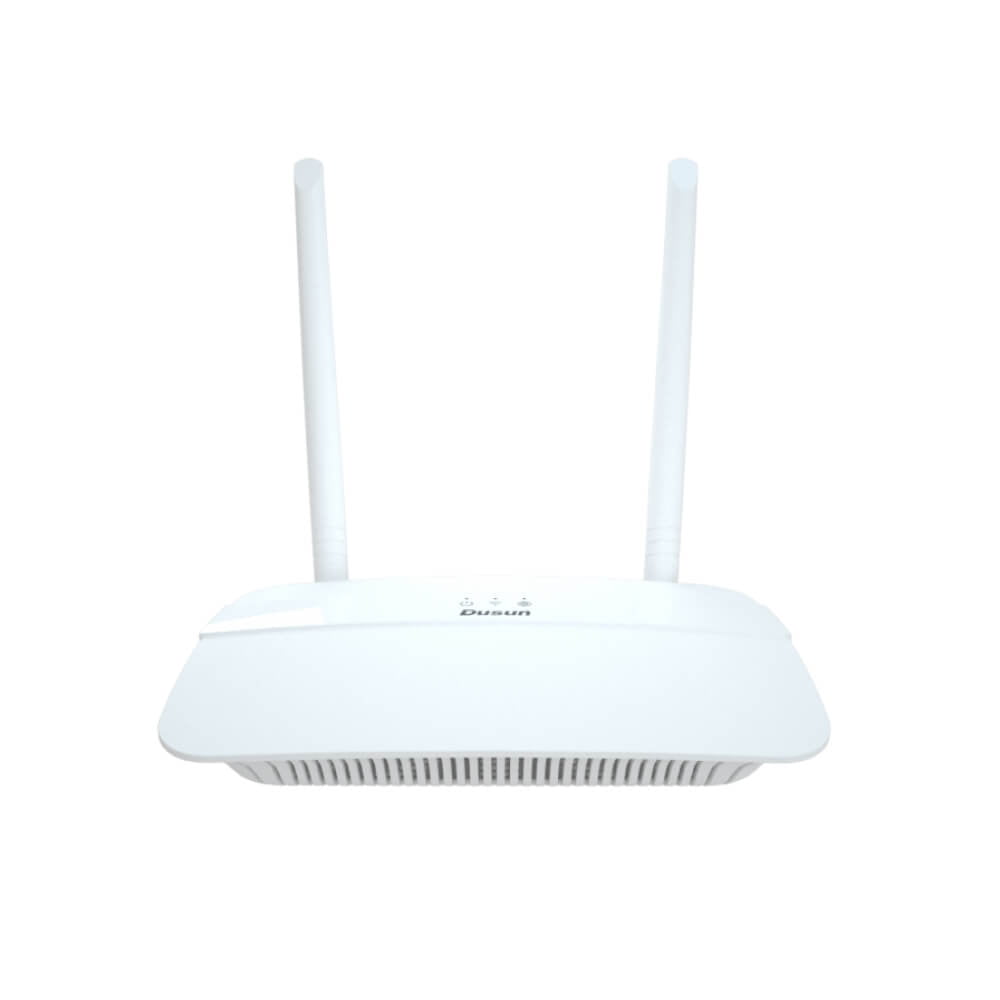

DSGW-021 All-in-one 4G LTE Wi-Fi Router Gateway (BLE/Zigbee avaliable)

Model: DSGW-021 Categories ,

DSGW-021 is a 4G WiFi router with SIM card slot and gateway function. It is developed based on MT7628AN Wi-Fi router SoC, support both Wi-Fi 2.4G and 5G. Meanwhile,it supports both Wi-Fi and 4G route and is able to switch dual modes automatically. In 4G CAT4 mode, it can support up to 64 Wi-Fi devices and reach download speeds of up to 150 Mbps.

  • MT7628AN 600MHz processor for powerful data handling capacity to improve wireless transfer efficiency;
  • RAM: 128MB, Flash: 16MB;
  • AC1200 Wi-Fi: maximum speeds of up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band;
  • cutting-edge 4G LTE CAT 4: Max. 150Mbps downlink and 50Mbps Uplink; Plug a SIM card and play.
  • Support converting high-speed TDD/FDD signals to Wi-Fi signals on the local area network (LAN);
  • Years of field testing guarantees compatibility with SIM cards in over 100 countries;
  • Can be used as a universal smart home gateway to connect to Zigbee and Bluetooth devices at the same time.

Quick View of DSGW-021 4G LTE Wi-Fi Router Gateway

DSGW-021 is a universal 4G LTE WiFi router with sim card slot.It asopts MT7628AN Wi-Fi-enabled processor to provide improved RF performance, reduced power consumption and optimized BOM cost, making it as the best cost-performance WiFi router solution.

Besides, DSGW-021 is also a 4G LTE router with an effortless plug-and-play SIM card slot to provide instant connectivity without any setup hassles.Meanwhile, two detachable LTE antennas enable user to enjoy stable and efficient communication across all your devices without dead zones and lagging signals.

DSGW-021 can also be used as a smart gateway hub because of its BLE, Zigbee connectivity. By bridging the power of router functionality and IoT gateway capabilities, this device is definitely a more streamlined and cost-effective all-in-one CPE and ISP device solution. It is recommended to used in smart apartment, smart office, home patient monitoring, and home elderly monitoring solutions.

Features of DSGW-021 4G LTE Wi-Fi Router Gateway

Multiple-Protocol All-in-One IoT Gateway

Coming with Zigbee3.0, Wi-Fi 2.4G/5G, BLE 5.2, Matter. Sending the captured data to the cloud with Wi-Fi, Ethernet, and LTE Cat4.

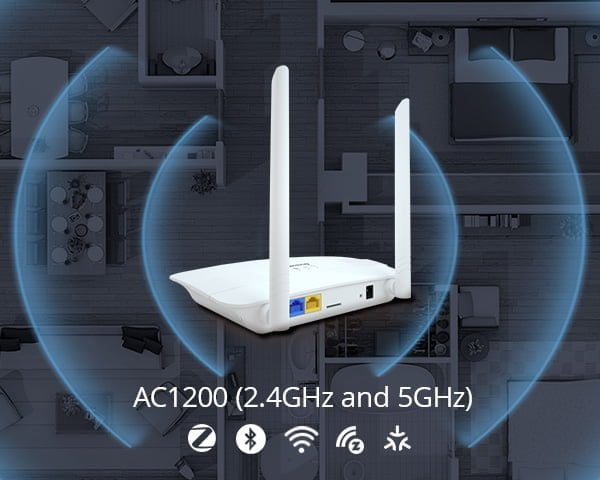

AC 1200 Dual Band Wi-Fi Router
Reducing interference for better connections to more Wi-Fi devices based on the Simultaneous dual band (2.4GHz and 5GHz ). And up to 300+867 Mbps speeds.
More features than a most common router
Performing not only the Gateway function but also supports router features. Converting high-speed TDD/FDD signals to WiFi signals on the local area network (LAN).
021 ac 1200 dual band
DSGW-021 development certified
Free development
Develop your custom firmware directly on our hardware using our comprehensive and fully documented guidance covering all aspects of the products’s capabilities and hardware interface.
Globally and Carrier Certified

Carrier-certified for immediate deployments and meets a comprehensive range of regulatory and industry standards worldwide. Accelerating your product development and get to market faster.

Hardware and Dimension of DSGW-021 4G LTE Wi-Fi Router Gateway

021 front
021 reverse side
DSGW-021 dimension
Dimension
DSGW-021 package list
Dimension

Parameters of DSGW-021 4G LTE Wi-Fi Router Gateway

CPU MT7628AN 600MHz processor
OS OpenWrt
RAM 128MB
Flash 16MB
Power Supply DC input with a voltage range of 4.5V to 5V.
The power seat aperture is 3.5mm and the needle diameter is 1.35mm, with a positive polarity.
Reset Factory reset button. To reset the Gateway to its original factory settings, press and hold it for more than 10 seconds
SIM 1 * Micro SIM slot
Interface • 1 * 10/100Mbps LAN Port
• 1 * 10/100Mbps WAN Port
Indicator LEDs • The Zigbee/BLE LED flashes when a signal is received.
• The Network LED indicates RED when no establishing a network connection.
• The Network LED indicates GREE when a network connection is established.
Antenna 1 * 4G LTE FPC antenna,2 * 2.4G/5G External On-Board antenna
Installation Flat, Ceiling
Weight TBD
Operating Temperature -0℃~40℃
Storage Temperature -40℃~65℃
Operating Humidity 10%~90% non-condensing
Storage Humidity 5%~90% non-condensing
IP Rating IP 22

Use Cases of DSGW-021 4G LTE Wi-Fi Router Gateway

Enjoy unmatched convenience and versatility. Tested in the field for years to ensure universal compatibility with 2 advanced LTE antennas to deliver a smooth connection. Simply plug in a micro SIM card and power on this elegant piece of technology to utilize fast and stable Wi-Fi, whether you’re at home or working remotely.

DM 20220707152349 011
Conference Room
DM 20220707152349 013
Remote Area
DM 20220707152349 015
Private Villa
DM 20220707152349 017
Temporary Store

Developer Resources of CDGW-021 4G LTE Wi-Fi Router Gateway

Connectivity Models of DSGW-021 4G LTE Wi-Fi Router Gateway

Category A ( In Stock )
Feature Wi-Fi 2.4G/5G LTE Cat4 BLE Zigbee
DSGW-021-2
DSGW-021-5
Category B (Built by Order )
Feature Wi-Fi 2.4G/5G LTE Cat4 BLE Zigbee
DSGW-021-3
Category C (Built by Order, MOQ: 500 )
Feature Wi-Fi 2.4G/5G LTE Cat4 BLE Zigbee
DSGW-021-1
DSGW-021-4

FAQs of DSGW-021 4G LTE Wi-Fi Router Gateway

4G LTE WiFi Router can maximize your home Internet options with both WiFi and 4G LTE. 4G WiFi router uses a 4G wireless module to enable mobile technology as opposed to a WiFi-only router, which can only handle wireless WiFi standards. When your current Internet service is disrupted or unavailable, users can switch over to 4G LTE as a flexible Internet choice.
The 4G LTE router gateway mainly embeds the wireless 4G module in the original WiFi router. Users can plug a SIM card into the router to enable data transfer and Internet access, etc. after which they may dial up and connect to the network via the operator’s network. Device with the WIFI function can also access the Internet through the LTE 4G router gateway.
CPE (Customer Premise Equipment) is actually a mobile signal access device that accepts mobile signals and transmits them through wireless WIFI signals. A CPE device can transform 4G signals into WiFi signals and enable several mobile terminals that can browse the Internet concurrently. CPE may be extensively utilized for wireless network access in rural regions, towns, hospitals, apartments, industries, and other locations. This can reduce the cost of broadband and eliminate the need for wiring links. DSGW-021, A 4G wireless router, may be thought of as a type of CPE device, to put it simply.

Additional information

Product Type

IoT Gateway, Router

Chip Platform

MediaTek

CPU Name

MT7628AN

RAM

128MB

Flash

16MB

Back-up Battery

None

Interface

RJ45, SIM Card Slot

System support

OpenWrt

Operating Temperature

0℃~40℃

Install

Ceiling, Flat

Network Device

Router
