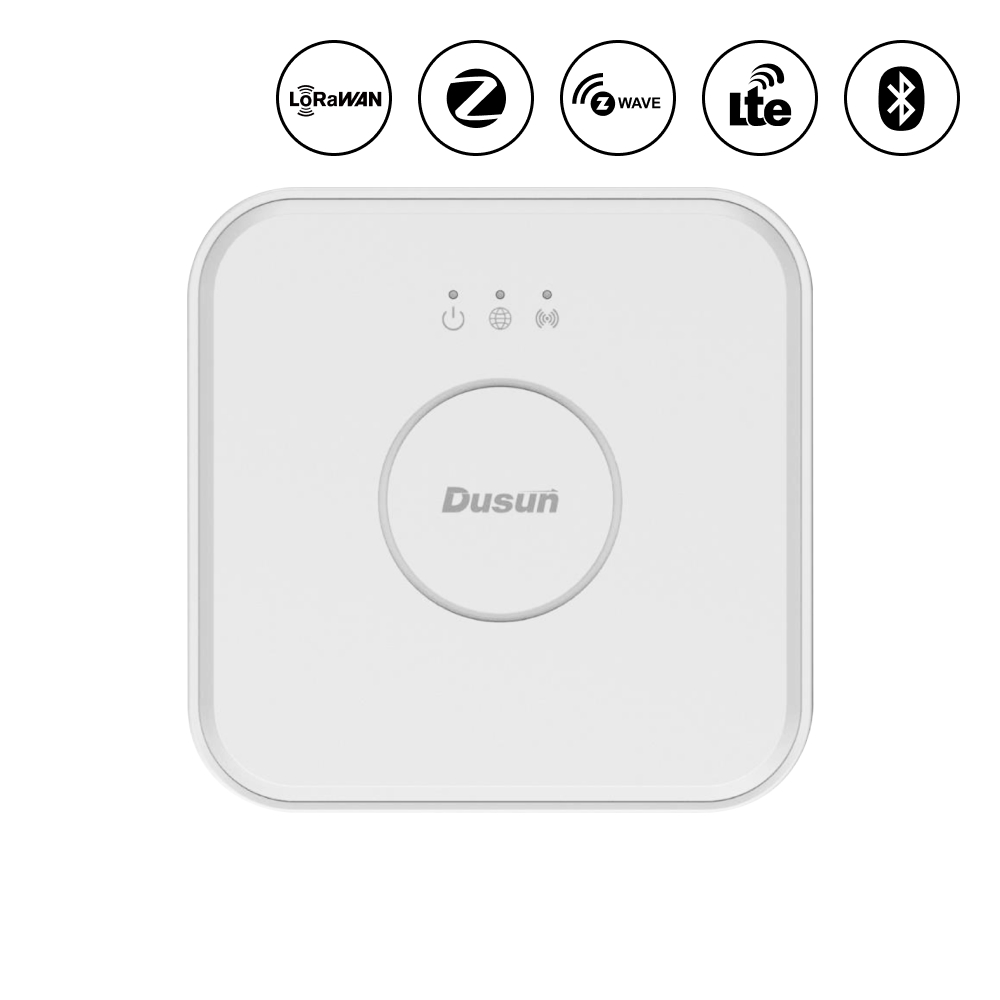

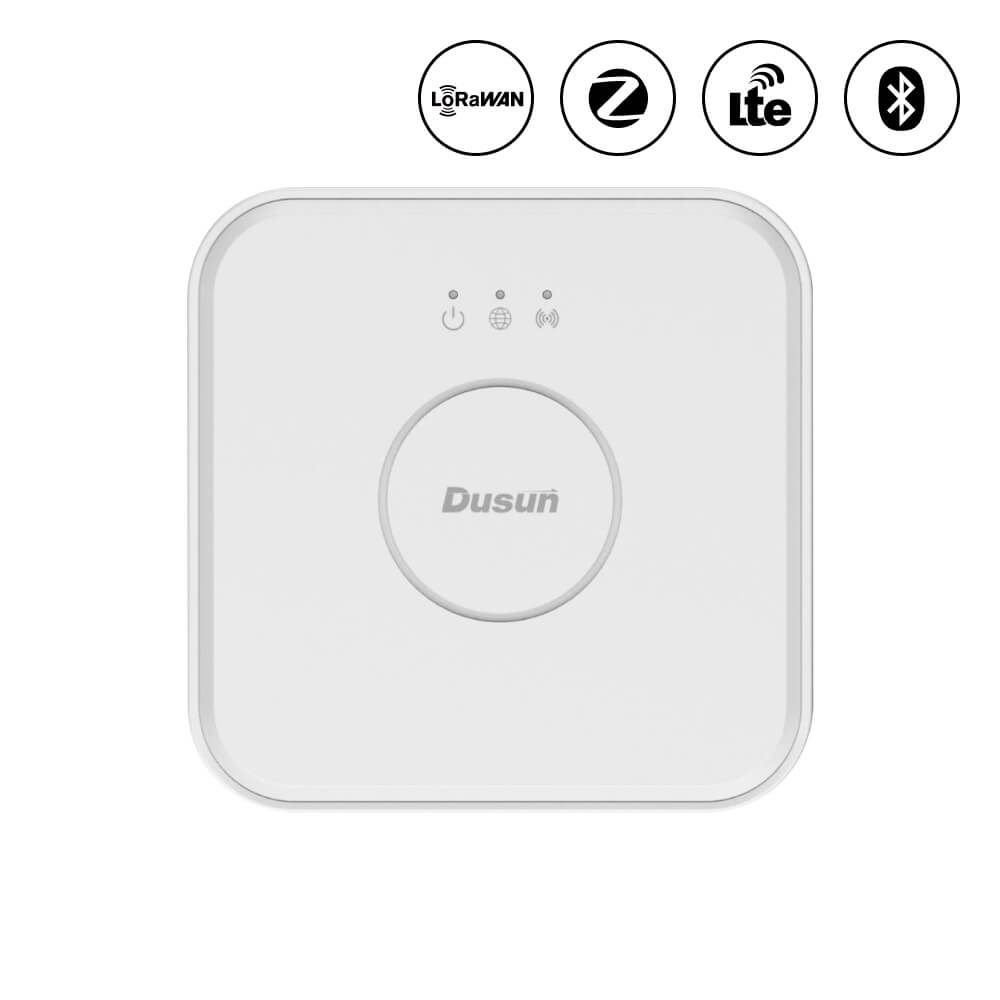

Quick View of DSGW-230-11 LoRaWAN Indoor Gateway for Smart Home and Building
DSGW-230-11 LoRaWAN Indoor Gateway is your all-in-one hardware solution for smart homes and building automation! At the core of the DSGW-230-11 lies the powerful RK3328 processor and a SX1302 module, which supports LoRaWAN frequency bands across diverse global regions, giving you unparalleled flexibility and reach.
At the same time, DSGW-230-11 LoRaWAN gateway indoor is also equipped with native support for popular protocols like BLE, Zigbee, and Z-Wave, effortlessly integrating into an array of smart devices and systems, creating a truly interconnected environment. With it, you can easily manage smart home, apartment, office, and building’s lighting, climate control, security, and more, all from a single, intuitive interface.
Thanks to the DSGW-230-11’s exceptional versatility and sleek enclosure, it can seamlessly blends with your décor, offering a discreet solution that packs a punch in performance. Whether you’re a homeowner looking to elevate your living experience or a property manager seeking to streamline operations, the DSGW-230-11 is the ultimate gateway with innovation meets simplicity to a smarter, more connected future.
Hardware Overview of DSGW-230-11 LoRaWAN Indoor Gateway
Dimensions and Package of DSGW-230-11 LoRaWAN Indoor Gateway
| CPU | RK3328 Quad-core Cortex A53 |
| System | Debian11 |
| RAM | 2GB |
| eMMC | 16GB |
| SD card | Up to 128GB |
| Power Supply | DC 12V/1.5A |
| User-Defined button | Support |
| Switch | On/Off power |
| Network Interface | • CAT-5/CAT-5e cables for data transmission and PoE Supply with a voltage range of 44 to 57V. • 1000M WAN/LAN variable port |
| USB | USB2.0 Type-C |
| SIM card slot | • Dual Micro SIM card slots, link backup capability, Dual card with single standby mode • Dimensions: 12mm x 15mm |
| SD card slot | 1 |
| Indicator LEDs (RGB) | 1). Power LED 2). Wireless LED 3）LTE indicator |
| Antenna | Zigbee/BLE PCB, Z-Wave/Wi-Fi FPC Antenna |
| Li battery | 5000mAH |
| Installation method | Flat, Ceiling |
| RTC | Real-Time Clock operated from an onboard battery |
| Hardware encryption | ECC608B |
| Operating Temperature | -10℃~55℃ |
| Storage Temperature | -40℃~65℃ |
| Operating humidity | 10%~90% |
| IP rating | IP22 |
Use Cases of DSGW-230-11 LoRaWAN Indoor Gateway
Developer Resources of DSGW-230-11 LoRaWAN Indoor Gateway
| Development | ||
|---|---|---|
| [QUICK START] | DSGW-230 SDK Quick Start Guide V1.0.pdf | V1.0 |
| [SDK] | DSGW-230_sdk_rv1.0 | V1.0 |
| [Firmware packaging] | DSGW230_1000M_Debian11_rleaseall_RV2.1 | V2.1 |
| [Zigbee module firmware] | DSGW-210-Zigbee-MG1B_image_RV8 Version：ezsp ver 0x08 | V ezsp ver 0x08 |
| [Ble module firmware] | DSI-0177-Amber-BLE-NCP_AV3.2.4.0129 Version：3.2.4.297 | V 3.2.4 |
| [Z-wave module firmware] | DSGW-210-Zwave_image_RV7.18 Version：Z-Wave 7.18 | V Z-Wave 7.18 |
| Tools | ||
|---|---|---|
| Burning tool] | AndroidTool_Release | |
| [Upgrade_tool] | DriverAssitant_v4.91 | V4.9.1 |
| Third-Party Software | ||
|---|---|---|
| [Node-RED] | node-red | |
| [Matter] | Matter Developer Document Matter Chip-tool Document | |
| [Ble2Mqtt] | BLE2Mqtt message API v1.7 | V1.7 |
| [Zigbee2Mqtt] | Zigbee2Mqtt Source Code & How To Install and Deploy[Dusun] | V2.2 |
| [Z-Wave2Mqtt] | Z-Wave2Mqtt(oz) of Dusun Gateway v1.0 | V1.0 |
| [Docker] | docker | |
| [Openz-wave] | OpenZwave Tutorial | |
| [Openthread] | OpenThread For OTBR | |
Model List of DSGW-230-11 LoRaWAN Indoor Gateway
| Model | Wi-Fi 2.4G/5G | Bluetooth 5.2 | Zigbee 3.0 | Z-Wave | LoRa | LTE Cat1 |
|---|---|---|---|---|---|---|
| DSGW-230-11 | ● | ● | ● | ● | ● | ● |
