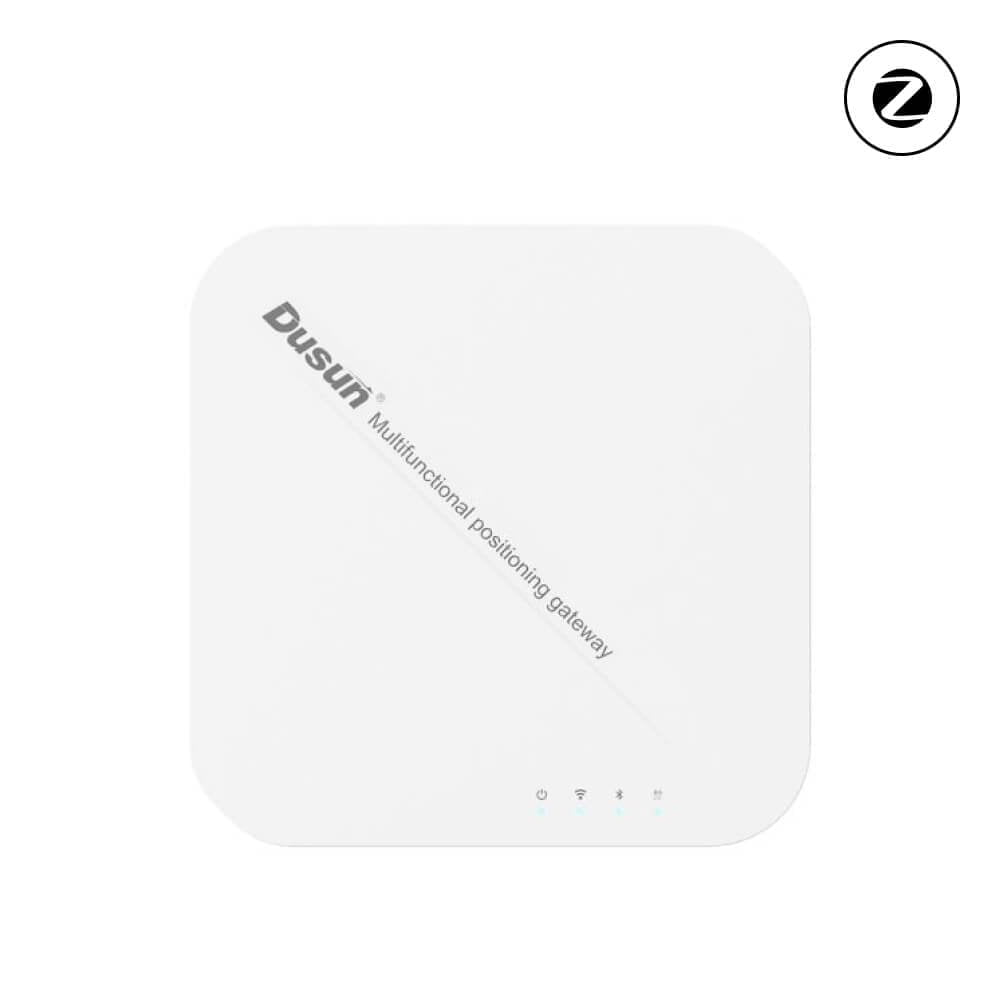

Quick View of DSGW-201-2 Zigee Wi-Fi 2.4/5G Ethernet Gigabit Gateway
DSGW-201-2 Zigbee WiFi Ethernet gateway seamlessly coordinates Zigbee devices and networks over both WiFi and Ethernet connections, creating a robust and reliable smart ecosystem that spans across fast and reliable communication mediums.
Whether you’re managing smart lighting, security systems, sensors, or other Zigbee devices, the DSGW-201-2 streamlines your smart home operations with cutting-edge connectivity. It bridges Zigbee networks into the fabric of your WiFi and Ethernet-enabled space, allowing users to enjoy the convenience of centralized control, reliable communication, and a future-proof solution that evolves with your connectivity needs.
With Power over Ethernet (PoE) support, the DSGW-201-2 wireless Zigbee gateway ensures efficient power supply while minimizing cable clutter. The option for ceiling mounting further enhances its usability and adaptability, making it an ideal solution for various residential and commercial settings.

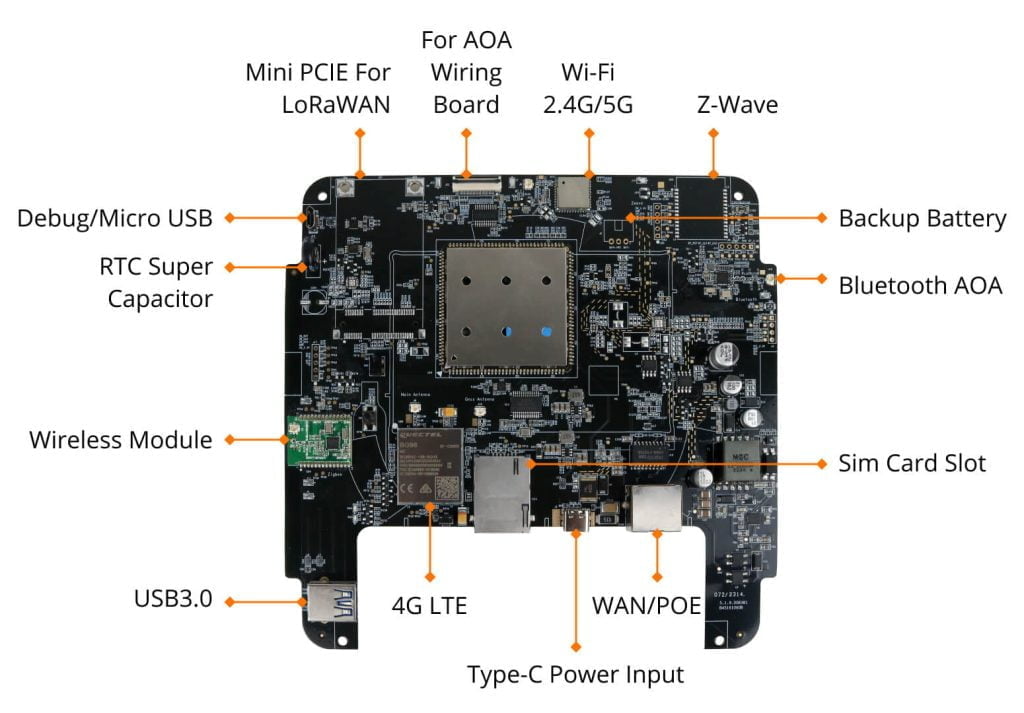

Hardware Overview of DSGW-201-2 Zigbee Wi-Fi Ethernet Gateway
Dimensions and Package of DSGW-201-2 Zigbee over Ethernet Wi-Fi Gateway
Parameters of DSGW-201-2 Zigbee to Ethernet Wi-Fi Gateway
| CPU | MT7621A 880MHZ Dual-Core processor |
| System | OpenWrt |
| RAM | 512MB |
| Storage | 8GB |
| TF Card | Up to 128GB |
| Power Supply | DC 12V/1.5A. The power connector features a 3.5mm aperture and a 1.35mm diameter needle with positive polarity. The power adapter is capable of 100-240V, 50/60HZ, and provides a 12V/1.5A output. |
| Reset | Factory reset button. To reset the Gateway to its original factory settings, press and hold it for more than 10 seconds |
| Network Interface | • CAT-5/CAT-5e cables for data transmission • PoE Supply with a voltage range of 44 to 57V • 1000M WAN/LAN variable port |
| USB | USB2.0 Type-C |
| Indicator LEDs (RGB) | 1). Power LED 2). Wireless LED 3）LTE indicator |
| Installation method | Flat, Ceiling |
| Operating Temperature | -10℃~55℃ |
| Storage Temperature | -20℃~65℃ |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 10%~90% non-condensing |
| IP rating | IP22 |
Use Cases of DSGW-201-2 Zigbee Ethernet Wi-Fi Gateway
Resources
| Development | ||
|---|---|---|
| [QUICK START] | DSGW-201-Quick Start Guide | V1.0 |
Connectivity Model List of DSGW-201-2 Zigbee Ethernet Wi-Fi Gateway
| Mdole | Wi-Fi 2.4G/5G | Bluetooth 5.2 | Zigbee3.0 | Z-Wave | LTE Cat4 |
|---|---|---|---|---|---|
| DSGW-201-2 | ● | ● |
