PLC Modbus Bacnet CAN KNX to MQTT Gateway Converter with RS485/232 Interfaces Introduction

The DSGW-081 PLC modbus bacnet CAN KNX to MQTT gateway converter with RS485/232 interfaces is an Industrial Edge Computing Gateway providing uninterrupted Internet access for machines over ubiquitous 3G/4G wireless networks and multiple broadband services.

With powerful industrial edge computing capabilities, this PLC IoT gateway can realize data optimization, real-time response, agile connection and intelligent analysis on the IoT edge, significantly reduces the data flow between field sites and data center, and avoid bottlenecks of cloud-end computing.

Also, PLC modbus bacnet CAN KNX to MQTT gateway converter offers comprehensive security protection and wireless services.

PLC Modbus Bacnet CAN KNX to MQTT Gateway Converter Feature Summary

– Supports 4G LTE CAT1

Support KNX protocol

– Built-in redundancies: dual SIM card, link backup, VRRP hot standby, ensuring uninterrupted -network communications

Powerful computing performance, providing high-performance processing resources for edge computing

– Supports a variety of industrial real-time Ethernet protocols and field bus protocols, compatible with a wide range of industrial equipment

– Supports Python development, for developing user custom applications

– Supports industrial cloud platforms: Microsoft Azure, Amazon AWS

– Easy for management and large-scale deployment, support SNMP protocol and Device Manager cloud platform for efficient remote central management

– Fully industrial-grade design, ready for challenging conditions

– Support multiple wires protocol: ZigBee3.0, Bluetooth5.2, Wi-Fi

PLC Modbus Bacnet CAN KNX to MQTT Gateway Converter Hardware Block Diagram

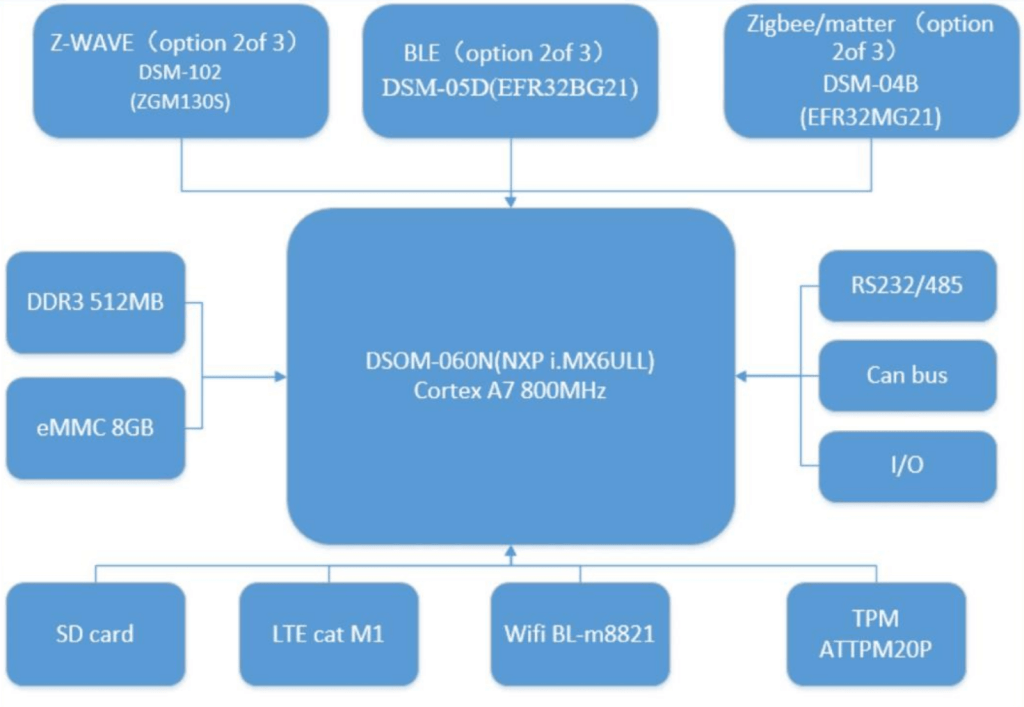

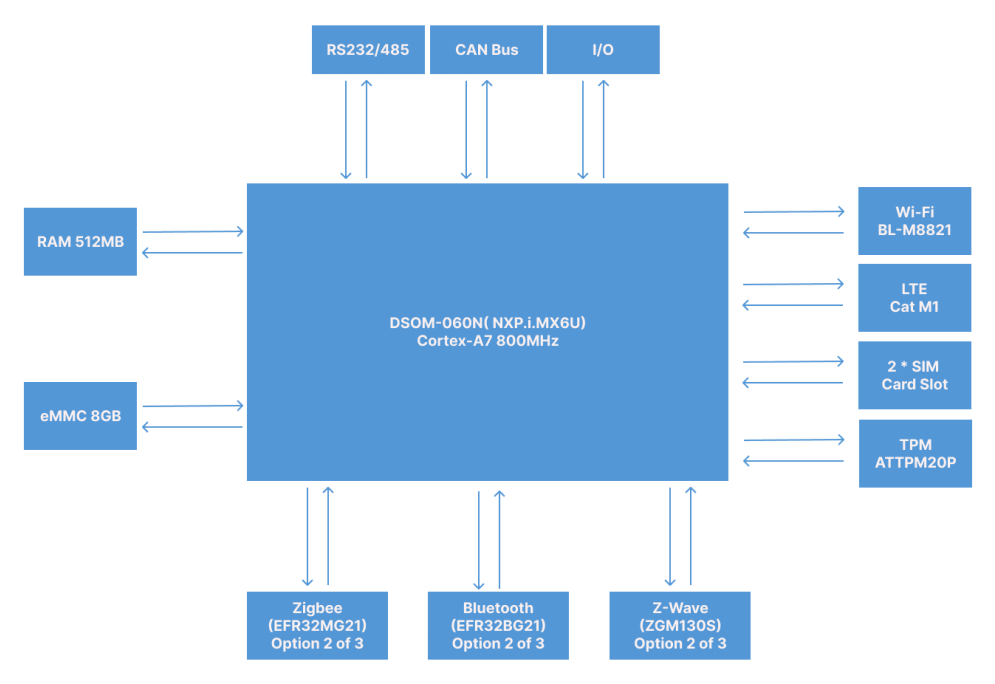

block diagram of plc iot gateway

PLC Modbus Bacnet CAN KNX to MQTT Gateway Converter Mechanical Requirement

mechanical design of plc iot gateway

PLC Modbus Bacnet CAN KNX to MQTT Gateway Converter Specifications

Technical Specification
CPUARM Cortex-A7,800Mhz
SystemLinux
DockerSupport
RAM512MB
Flash8GB eMMC
PowerInput: DC 12-48V
Indicator LEDs• Power LED normally on when powered on
• Zigbee/BLE/Z-WAVE LED is flash when the signal come
• Network LED is flash, When the gateway can access the Internet
• Ethernet LED is flash, When the network port is plugged into
the Internet cable
• LTE Signal LED, It indicates the signal strength of LTE
Reset ButtonThe reset button is hole button, After pressing the reset button for
more than 5 seconds, the Gateway will be restored to the factory
settings.
I/O Port4 digital input channels DI
State "1": +10~+30V State "0": 0~+3V
2 digital output channels DO
Maximum load [email protected] or 250VAC
2 analog input channels AI
Current signal: 0-20mA, 4-20mA
Voltage signal: 0-5VDC, 0-10VDC
Choose one of the above 4 ranges
Ethernet1*10/100Mbps WAN/LAN port
SIM card Slot2*Drawer card slot
Antenna3*SMA,1*LTE, 2*2.4GHZ
RS232Support
RS485Support
CANSupport
TPM(Trusted Platform
Module)
Chip: ATTPM20P
Cryptographic Support for:
– HMAC
– AES-128
– SHA-1
– SHA-256
– ECC BN_P256, ECCNIST_P256
– RSA 1024-2048 bit keys
Industry ProtocolBACnet; Profinet; Ethernet/IP; Modbus; OPC/UA
InstallationDIN-rail, wall mounting
Protection RatingIP30
HousingAluminum alloy
Storage Temperature-40℃~85℃
Operating Temperature-40℃~85℃
Ambient Humidity5~95%
Performance Requirement
Wi-Fi Performance• IEEE wireless LAN standard:
IEEE802.11n; IEEE802.11g; IEEE 802.11b
• Data Rate:
IEEE 802.11b Standard Mode:1,2,5.5,11Mbps
IEEE 802.11g Standard Mode:6,9,12,18,24,36,48,54 Mbps
IEEE 802.11n: MCS0~MCS7 @ HT20/ 2.4GHz band
• Sensitivity:
HT40 MCS7 : [email protected]% PER(MCS7) /2.4GHz band
HT20 MCS7 : [email protected]% PER(MCS7) /2.4GHz band
• Transmit Power:
IEEE 802.11n: 16dBm @HT20/40 MCS7 /2.4GHz band
IEEE 802.11g: 16dBm @54MHz
IEEE 802.11b: 18dBm @11MHz
• Wireless Security: WPA/WPA2, WEP, TKIP, and AES
• Working mode : Bridge、Gateway、AP Client
• Range: 50 meters minimum, open field
• Transmit Power:17dBm
• Highest Transmission Rate: 300Mbps
• Frequency offset: +/- 50KHZ
• Frequency Range (MHz): 2412.0~2483.5
• Low Frequency (MHz):2400
• High Frequency (MHz):2483.5
• E.i.r.p (Equivalent Isotopically Radiated power) (mW)<100mW • Bandwidth (MHz):20MHz/40MHz
• Modulation: BPSK/QPSK, FHSSCCK/DSSS, 64QAM/OFDM
Zigbee3.0 Performance• Range: 100 meters minimum, open field
• Transmit Power:17.5dBm
• Highest Transmission Rate: 300Mbps
• Frequency offset: +/- 20KHZ
• Receiving Sensibility:-94dBm
• Frequency Range (MHz):2401.0~2483.5
• Low Frequency (MHz):2400
• High Frequency (MHz):2483.5
• E.i.r.p (Equivalent Isotopically Radiated power) (mW)<100mW
• Bandwidth (MHz):5MHz
• Modulation: OQPSK
Bluetooth Performance• Bluetooth Protocol: Bluetooth 5.0
• TX Power: 19.5dBm
• Range: 150 meters minimum, open filed
• Receiving Sensibility: [email protected]%BER
• Frequency offset: +/-20KHZ
LTE Cat1• LTE FDD: B1/B3/B7/B8/B20
• WCDMA: B1/B8
• GSM: 900/1800MHz
Z-wave Performance• TX power up to13dBm (20mW)
• RX sensitivity: @100kbps-97.5dBm
• Range: 100 meters minimum, open filed
• Default Frequency: 916MHz( Different country with different
frequency) Pls check the z-wave frequency band table
RF Factory Test Mode• Setting the Board into the test mode, using the Iqexl-ws that
can test the Wi-Fi, Zigbee.
• Please refer to the DUSUN Test Specification for details.

PLC Modbus Bacnet CAN KNX to MQTT Gateway Converter Quality Requirements

Quality &Testing Information
Information DescriptionStandard(Yes) custom(No)
ESD TestingYes
RF Antenna AnalysisYes
Environmental TestingYes
Reliability TestingYes
CertificationFCC,CE, Bluetooth certification, zigbee certification, PTCRB
