Quick View of DSGW-081-3 Zigbee Modbus RS485 Gateway Converter
DSGW-081-3 Zigbee Modbus RS485 Gateway Converter stands as a versatile solution to make protocol conversion from Modbus RUT to Zigbee by using an universal standard protocol such as Modbus/RTU via RS485 serial interface.
DSGW-081-3 can also function as a coordinator for the Zigbee network, managing wireless traffic from and to other devices.It can also serve as the parent device for the same family’s battery-powered sensors, saving the data they asynchronously transmit independent of Modbus requests.
Meanwhile, DSGW-081-3 can serve as a remote web access panel that lets you handle groups of devices esaily.
Features of DSGW-081-3 DSGW-081-3 Zigbee Modbus RS485 Gateway Converter
Multiple Backhaul Connectivities
Capturing data from end devices and sends it to the cloud via Ethernet.
Multiple-Protocol
Connecting various sensors/devices through Zigbee3.0, Modbus gateway RS485/232, I/O Interface.
Industrial-Grade Design
Coming with Rugged enclosure protection for protection from water and dust ingress, ideal for the harsh environments. Wall-mount and DIN-rail mounting options.

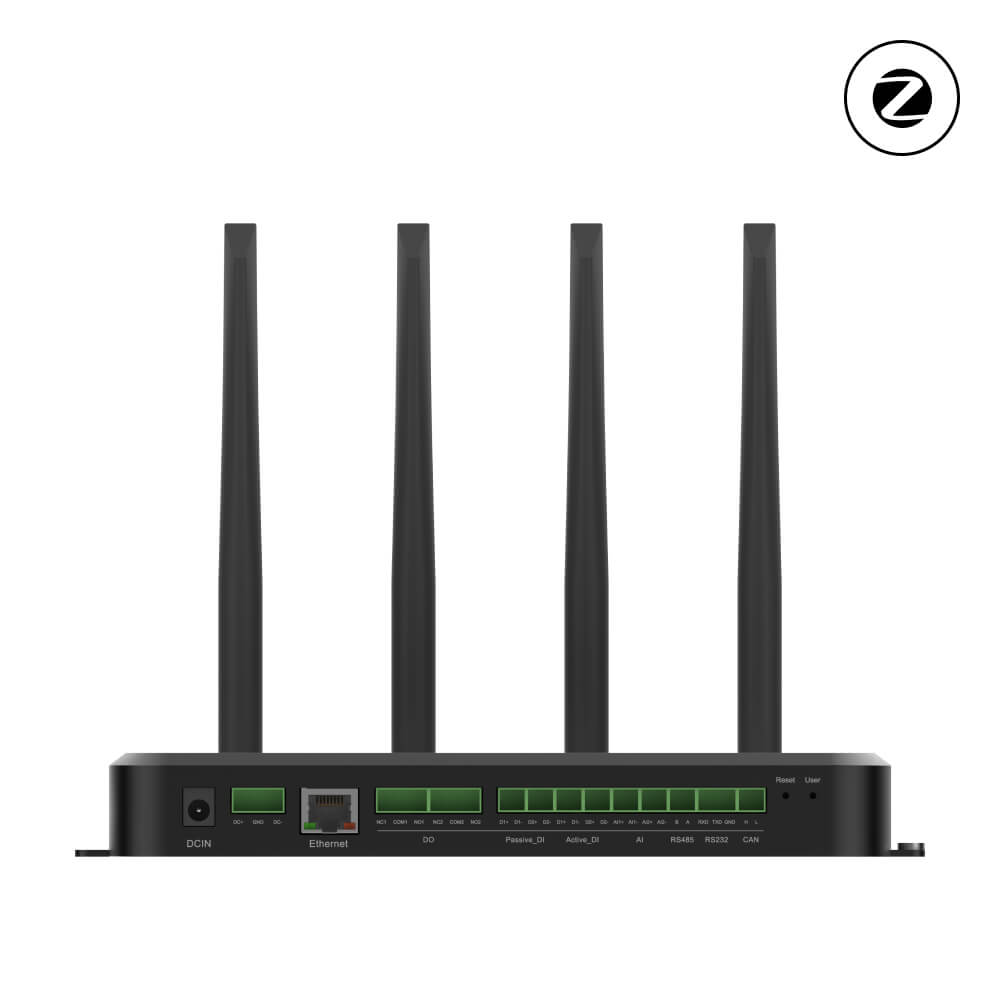

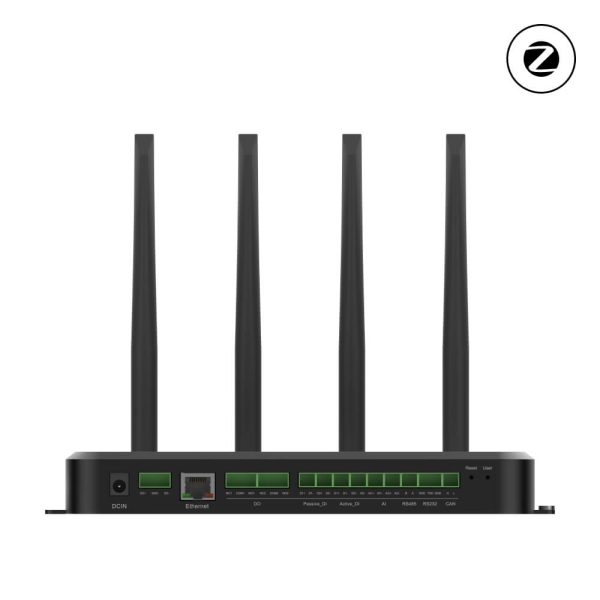

Hardware Overview of DSGW-081-3 Zigbee Modbus RS485 Gateway Converter
Dimension and Package of DSGW-081-3 Zigbee Modbus RS485 Gateway Converter
Parameter of DSGW-081-3 Zigbee Modbus RS485 Gateway Converter
| CPU | ARM NXP i.MX6ULL, Cortex-A7,800Mhz |
| System | Debian 11 |
| Docker | Support |
| RAM | 512MB |
| Storage | 8GB eMMC |
| Power | Input: DC 12V/2A |
| Indicator LEDs | ● Power LED normally on when powered on ● Zigbee/BLE/ LED flash when the signal comes ● Network LED flash When the Gateway can access the Internet ● LTE Signal LED, It indicates the signal strength of LTE |
| Reset | Factory reset button. To reset the Gateway to its original factory settings, press and hold it for more than 10 seconds |
| I/O Port | 4 digital input channels DI State "1": +10~+30V State "0": 0~+3V 2 digital output channels DO Maximum load 5A@30VDC or 250VAC 2 analog input channels AI Current signal: 0-20mA, 4-20mA Voltage signal: 0-5VDC, 0-10VDC Choose one of the above 4 ranges |
| Ethernet | 1*10/100Mbps WAN/LAN port |
| SD | 1 * SD slot |
| Antenna | 4*SMA：1*LTE, 3*2.4GHZ |
| RS232/RS485 | 1*RS232, 1*RS485 |
| CAN | Support |
| TPM (Trusted Platform Module) | Chip: ATTPM20P Cryptographic Support for: – HMAC – AES-128 – SHA-1 – SHA-256 ECC BN_P256, ECCNIST_P256 RSA 1024-2048 bit keys |
| Industry Protocol | Ethernet/IP, Modbus |
| Installation | DIN-Rail, Flat, Ceiling |
| Protection Rating | IP30 |
| Housing | Aluminum alloy |
| Storage Temperature | -40℃~85℃ |
| Operating Temperature | -20℃~85℃ |
| Ambient Humidity | 5~95% |
Use Cases of DSGW-081-3 Zigbee Modbus RS485 Gateway Converter
Developer Resources of DSGW-081-3 Zigbee Modbus RS485 Gateway Converter
| Development | ||
|---|---|---|
| [SDK] | DSGW-081 sdk | V1.0 |
| [Firmware packaging] | DSGW-081_AV1.0.0.10.rar | V1.0.0.10 |
| [QSG] | DSGW-081_Smart_Programmable_Gateway_SDK_Quick_Start_Guide_v1.1 | V1.1 |
| [Zigbee module firmware] | Zigbee-V1.1.rar | v1.1 |
| [Ble module firmware] | Ble-V1.0.rar | V1.0 |
| Tools | ||
|---|---|---|
| [Burning tool] | DSGW-081_AV1.0.0.10.rar | |
| Third-Party Software | ||
|---|---|---|
| [Openz-wave] | OpenZwave Developer Tutorual | |
Connectivity Model List of DSGW-081-3 Zigbee Modbus RS485 Gateway Converter
| Model | Ethernet | RS485 | CAN | I/O | BLE 5.2 | Z-Wave | Zigbee3.0 | 4G LTE Cat1/M1 | Wi Fi2.4G |
|---|---|---|---|---|---|---|---|---|---|
| DSGW-081-3 | ● | ● | ● | ● | ● | ● |
