Product Name: Smart Watch
Model Name: DSSM-010
1. Introduction
1. Introduction
This product supports a location tracker, temperature monitor, and heart rate monitor. It can monitor your heart rate data at all times and your mood throughout the day. Know your heart like the palm of your hand. At the same time, it can monitor your sleep and generate professional sleep reports.The display is quite large. It’s easy to get information from it, including heart rate, the quantity of steps, and quality of sleep. When your phone is nearby, you’ll be able to get calls, texts and apps notifications.
1.2 Product Feature Summary
- All-day temperature detection
- Forehead & Wrist temperature dual mode
- With a combination of the beautiful and practical watch face to match your sports style in different scenes, you can also directly view steps, heart rate, weather forecast, etc
- Ultra-long battery life Heart rate monitoring, more precise, more intimate
- Multiple exercise modes make a scientific effective training
- Vibration reminder with call ID
- Important information never miss
- Legible sports data
- Connected GPS tracking gives you a special exercise experience
- Automatic sleep recognition let you know more about your sleep quality and help you improve your sleep in timely
2. Mechanical Requirement
2.1 Drawings

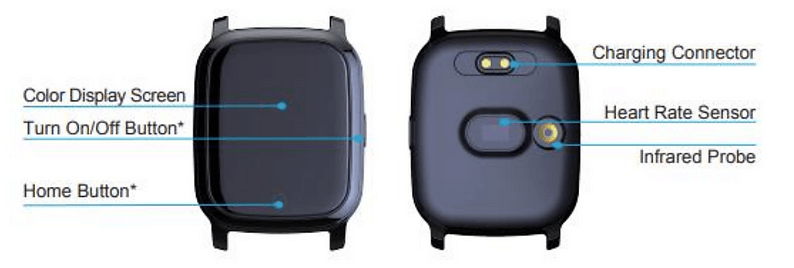

2.2 Interface
3. Specifications
3.1 Hardware Specification
| Category | Specifications |
|---|---|
| BT Chipset | Nordic 52832 |
| G-Sensor_IC | kionix-KX023 |
| Temperature Probe | Infrared Sensor |
| HR IC | HRS3313 |
| BT Version | BLE 5.0 |
| BT Range | 8-10 m |
| Memory (Ram+Rom+Flash) | 64KB+512KB+4MB |
| Date Storage | 3 days |
| Water Resistance | IP67 |
| Charging type | Magnetical charging cable |
| Body Material | Tempered Glass+Zinc alloy+ABS |
| Band Material | Metal/TPU/Leather |
| Body Dimensions | 51.7(L)*37.3(W)*11.5(H)mm |
| Weight(grams) | 48g |
| Display size | 1.30”TFT IPS |
| Display Resolution | 240*240dpi |
| Battery Capacity | 140mAh |
| Working Time | 7 days |
| Standby Time | 30 days |
| Colors | ●TPU：Black/Blue/Green/Purple/Pink； ●Metal：Black/Siliver； Leather：Black/Pink/Blue |
3.2 Software Specification
| Category | Specifications |
|---|---|
| Compatible System | Android 4.4 or above, IOS 9.0 or above |
| Sport & Healthy | Daily Activity Record (Pedometer, Calories Burnt, Distance measurement) |
| Sleep Quality Monitoring (Deep sleep, Light sleep, awake) | |
| Heart Rate Monitoring (Manual continuous monitoring, Timed monitoring) In the automatic monitoring mode, the data is detected every 15 minutes, and the all-day trend chart is formed in the APP | |
| Body Temperature Test (Manual temperature monitoring, Temperature auto-monitoring) Manual temperature monitoring: Wrist temperature mode & forehead temperature mode. In the automatic monitoring mode, the data is detected every 15 minutes, all temperature data is synced to App, is easy to check temperature trend in App anytime. | |
| Multi-sport Mode (Hiking. Running, Cycling, Skipping, Badminton, Basketball, Football) | |
| Sedentary Reminder | |
| Goal Achieved Reminder | |
| Data sharing with Google fit or Apple Health | |
| Message Reminder | Message Push (Text Msg, WeChat, WhatsApp, Facebook, Twitter, Line, Skype, Instagram, LinkedIn) |
| Multi-language display: English, German, French, Spanish, Japanese, Chinese | |
| 3 unread messages stored | |
| Caller ID Notification | |
| Call Reject | |
| Smart Assistant | Alarm Clock (8 alarms) |
| Heart rate interval and warning | |
| Real time weather | |
| Find Phone | |
| Brightness adjustment | |
| Wrist Sense | |
| Camera Control Music Control (Preferred music player can be selected) | |
| Multi-dial Options (4 watch faces) | |
| Reset Device | |
| Stopwatch | |
| Turn ON/Off | |
| Metric and English switching | |
| OTA Upgrade |
