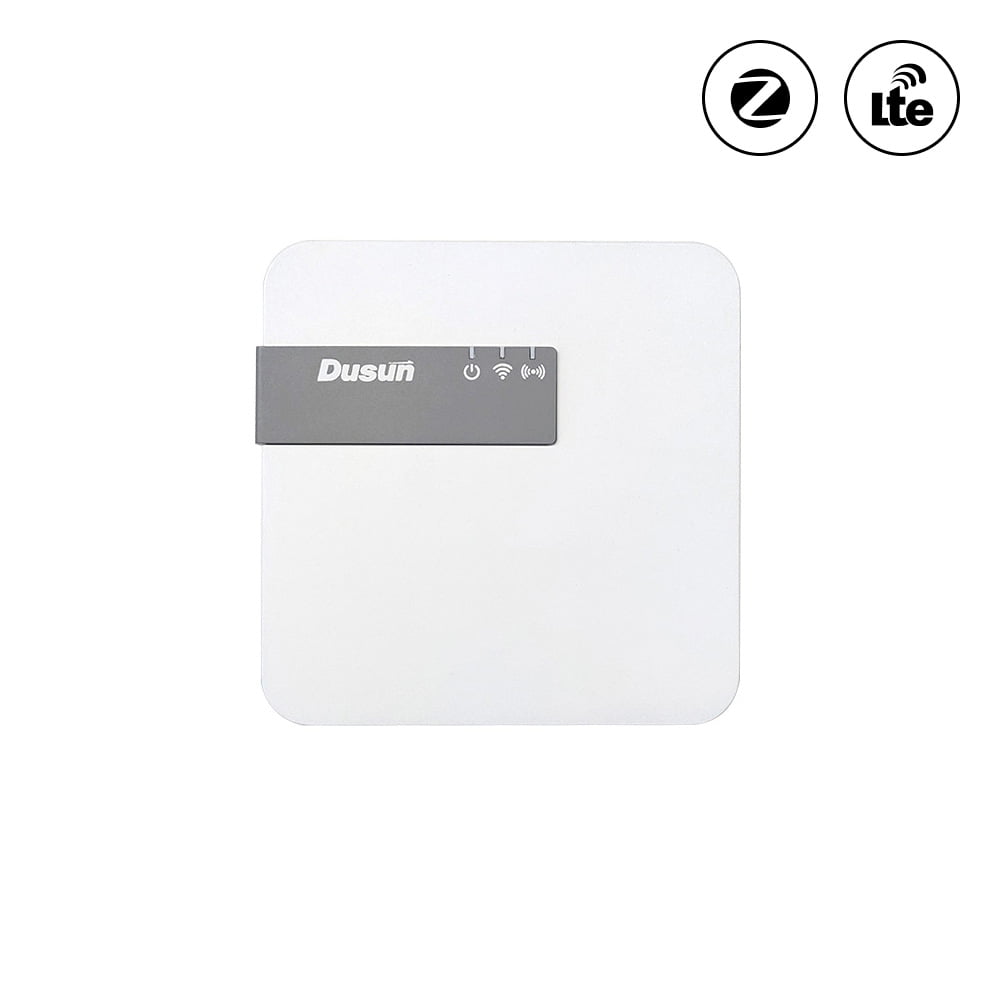

DSGW-092-3 ESP32 Zigbee Gateway with Wi-Fi and LTE CatM1 Connectivity

Model: DSGW-092-3 Category:

DSGW-092-3 ESP32 Zigbee gateway is powered by the versatile ESP32 processor, transforming your space into an intelligent hub for Zigbee devices, seamlessly bridging the gap between Zigbee and WiFi technologies. Built by Order, Lead Time: 3~4 Weeks.

  • Processor: ESP32
  • OS: FreeRTOS
  • Supports IEEE802.11n, IEEE802.11g, IEEE 802.11b protocol
  • Supports Wi-Fi2.4, Zigbee 3.0
  • Supports LTE Cat M1
  • One WAN/LAN 100Mbps variable network port


Quick view of DSGW-092-3 ESP32 Zigbee Gateway

DSGW-092-3 ESP32 Zigbee gateway can takes the role of an ESP32 Zigbee coordinator, enabling your Zigbee devices to communicate and interact harmoniously.

DSGW-092-3 Zigbee ESP32 gateway empowers you with complete control over your Zigbee devices, from lighting and sensors to security systems and more. You can step into a world where Zigbee and WiFi converge effortlessly with the help of it.

DSGW-092-3 ESP32 Zigbee gateway’s advanced capabilities make it an ideal choice for creating a network of Zigbee-enabled devices that can be managed and controlled with ease, whether you’re using it for home automation, energy management, or building control.

Dimensions and Package of DSGW-092-3 Zigbee ESP32 Gateway

dsgw 090 Dimensions
dsgw 090 package list
Package List

Parameters of DSGW-092-3 Zigbee Gateway ESP32 Processor

System FreeRTOS
RAM 520 KB
Flash 4 MB
Power Supply Green LED: Power LED normally on when powered on
Red LED: Zigbee LED flash when the signal comes
Blue LED: Wi-Fi LED normally on after connecting to network for 1-2 sec
Antenna LTE FPC Antenna, Zigbee PCB Antenna
SIM 1 * Micro SIM slot
Ethernet 1 * 10/100Mbps WAN/LAN variable
Reset Factory reset button. To reset the Gateway to its original factory settings, press
and hold it for more than 10 seconds
Wireless protocol Wi-Fi 2.4G, Zigbee3.0
Installation method Flat, Ceiling
Weight TBD
Operating Temperature -10℃~55℃
Storage Temperature -20℃~65℃
Operating humidity 10%~90%
IP rating IP22

Use Cases of DSGW-092-3 ESP32 Gateway with Zigbee Connectivity

Developer Resources

[QUICK START] DSGW-092 SDK Development Document V1.0
[SDK] esp-idf official url V1.1.1
[Firmware packaging] DSGW092_ESP32_AV1.0.1 V1.1.5
[Ble module firmware] DSGW092_BLE_AV1.0.0 V 1.0.0
[Zigbee module firmware] ncp_zigbee_MG21_image_RV8(EZSP)-EN V8(EZSP)-EN

Connectivity Model List of DSGW-092-3 ESP32 Zigbee Coordinator Gateway

Category B (Built by Order)
Model LTE Cat M1 Wi-Fi 2.4G Bluetoth5.2 Zigbee3.0

Additional information

Product Type

IoT Gateway

Chip Platform


CPU Name






Back-up Battery



RJ45, SIM Card Slot

System support


Operating Temperature



Ceiling, Flat
