Dusun Pi3 Model C

Table of Contents

DSGW 010 C PNG03

1. Introduction

1.1 Purpose& Description

Dusun Pi3 Model C is a full 8-channel outdoor Gateway, based on the LoRaWAN protocol, with built-in Ethernet connectivity for a straightforward setup. Additionally, there is an onboard Wi-Fi setup (supporting 2.4 GHz/5GHz Wi-Fi) that allows it to be easily configured via the default Wi-Fi AP mode. With its industrial-grade components, it achieves a high standard of reliability.

1.2 Product Feature Summary

– Support the POE switch power supply

– Support IEEE802.3-2012 Type 1, the IEEE802.3-2012 Type 1 requires a power supply device (PSE) to provide 44 to 57V, and the power of the powered device (PD) must not exceed 12.95 W and the current does not exceed 350 mA.

– CPU: Quad-core Cortex A35

– 2GB on-board RAM

– 32GB eMMC

– Base on the LoRa Concentrator Engine: Semtech SX1302

– TX power up to 27dBm, RX sensitivity down to -139dBm @SF12, BW125kHz

– LoRa Frequency band support: RU864, IN865, EU868, US915, AU915, KR920, AS923.

– Support Wi-Fi 2.4G/5G IEEE 802.11b/g/n/ac

– Support BLE5.0

– Support GPS,GLONASS,Galileo and QZSS

– Support IP66 waterproof housing

– Support OTA

– One WAN/LAN variable network port

– RoHS/WEEE compliance(Lead-free)

– FCC, CE, IC compliance

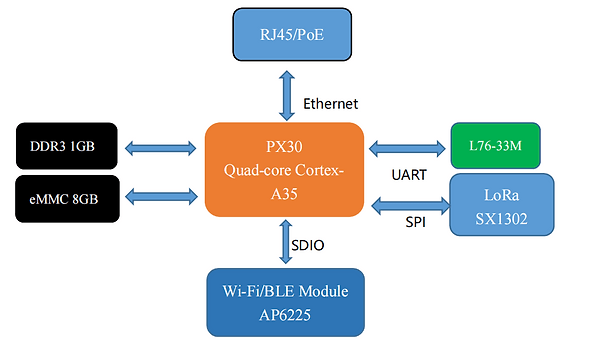

1.3 Hardware block diagram
DSGW 010 C PNG04

2 Mechanical Design

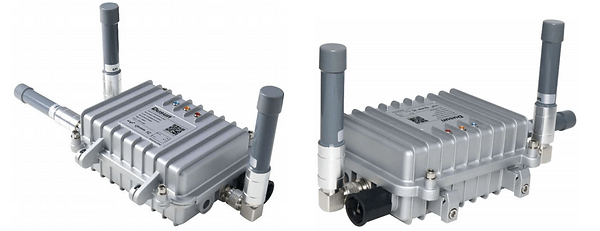

2.1 Drawing
DSGW 010 C PNG02
2.2 Interface
DSGW 010 C PNG06

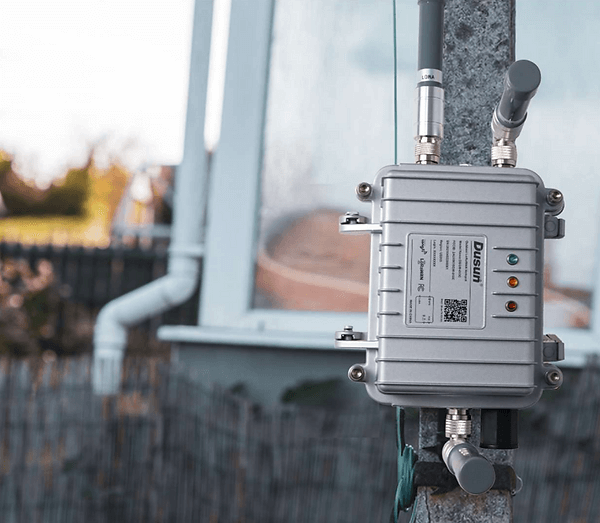

2.3 Installation
DSGW 010 C PNG05

3 Electrical Requirements

3.1 Hardware Information
CategorySpecifications
CPUQuad-core Cortex-A35
RAM1GB
ROMeMMC 8GB
SystemLinux
Security moduleATECC608
Power Supply PortSupport DC input , input Voltage range is 4.5V to 5V. Power seat
aperture is 3.5mm. The needle diameter is1.35 mm and is positive.
Power adapter:100-240V 50/60HZ, Output is 5V/2A
Reset buttonThe reset button inside gateway, After pressing the reset button for more than 5 seconds, the Wi-Fi unit will be restored to the factory settings.
Network InterfaceThe network interface supports CAT-5/CAT-5E to transmit data and POE Power Supply (voltage range is 44~ 57V). It is WAN/LAN variable.
Indicator LEDs1).Power LED normally on when powered on
2).Network LED normally on when connected
3). Card indicator
TF cardUp to 128GB
Operating Temperature0℃~65℃
waterproof levelIP66
3.2 Performance Requirement
Wi-Fi Performance• IEEE wireless LAN standard:
IEEE802.11n; IEEE802.11g; IEEE 802.11b
Data Rate:
IEEE 802.11b Standard Mode:1,2,5.5,11Mbps
IEEE 802.11g Standard Mode:6,9,12,18,24,36,48,54 Mbps
IEEE 802.11n: MCS0~MCS7 @ HT20/ 2.4GHz band
MCS0~MCS7 @ HT40/ 2.4GHz band
• Sensitivity:
HT40 MCS7 : [email protected]% PER(MCS7) /2.4GHz band
HT20 MCS7 : [email protected]% PER(MCS7) /2.4GHz band
• Transmit Power:
IEEE 802.11n: 16dBm @HT20/40 MCS7 /2.4GHz band
IEEE 802.11g: 16dBm @54MHz
IEEE 802.11b: 18dBm @11MHz
• Wireless Security: WPA/WPA2, WEP, TKIP, and AES
• Working mode : Bridge、Gateway、AP Client
• Range: 50 meters minimum, open field
• Transmit Power:17dBm
• Highest Transmission Rate: 300Mbps
• Frequency offset: +/- 50KHZ
• Frequency Range (MHz): 2412.0~2483.5
• Low Frequency (MHz):2400
• High Frequency (MHz):2483.5
• E.i.r.p (Equivalent Isotopically Radiated power) (mW)<100mW
• Bandwidth (MHz):20MHz/40MHz
• Modulation: BPSK/QPSK, FHSSCCK/DSSS, 64QAM/OFDM
BLE Performance• TX Power: 10dBm
• Range: 150 meters minimum, open filed
• Receiving Sensibility: [email protected]%BER
• Frequency offset: +/-20KHZ
• Frequency Range (MHz):2401.0~2483.5
• Low Frequency (MHz):2400
• High Frequency (MHz):2483.5
• E.i.r.p (Equivalent Isotopically Radiated power) (mW)<10mW
• Bandwidth (MHz):2MHz
• Modulation: GFSK
LoRa Performance• Supports class A, C
• Frequency band support: RU864, IN865, EU868, US915, AU915,
KR920, AS923
• TX power up to 27dBm, RX sensitivity down to -139dBm @SF12,
BW125kHz
GPSGPS,GLONASS, Galileo and QZSS
EthernetWAN/LAN port:10M/100Mbps
