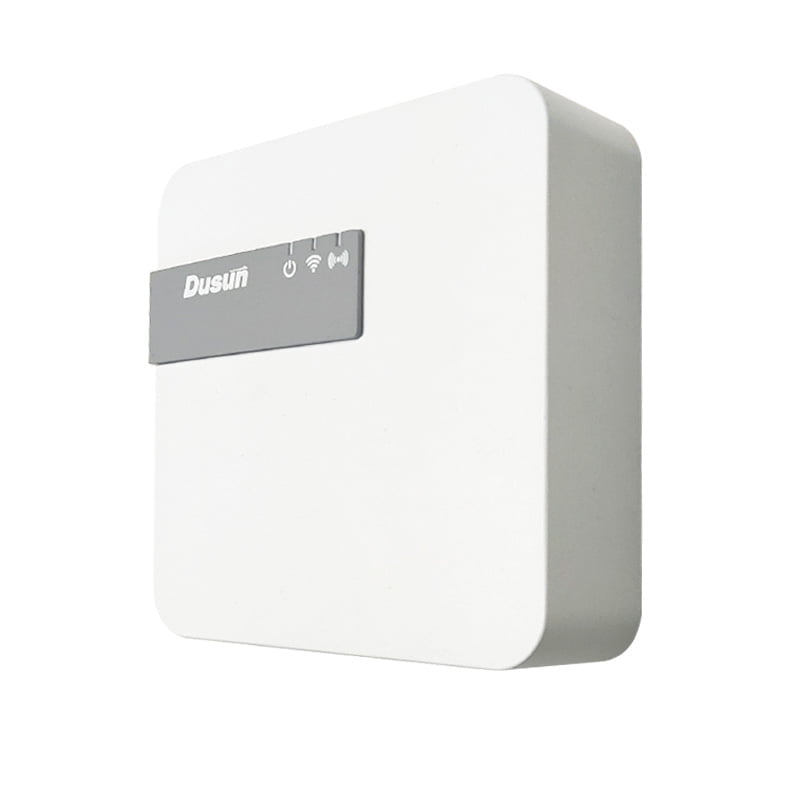

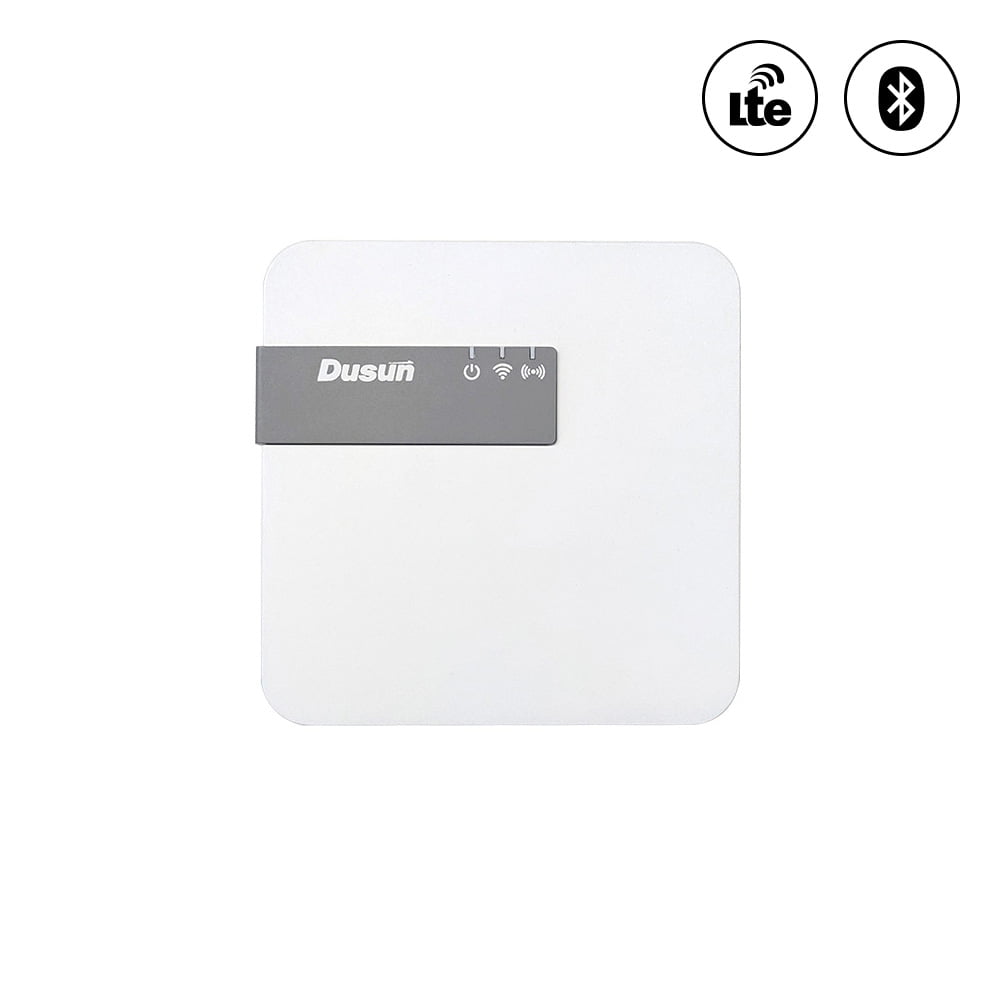

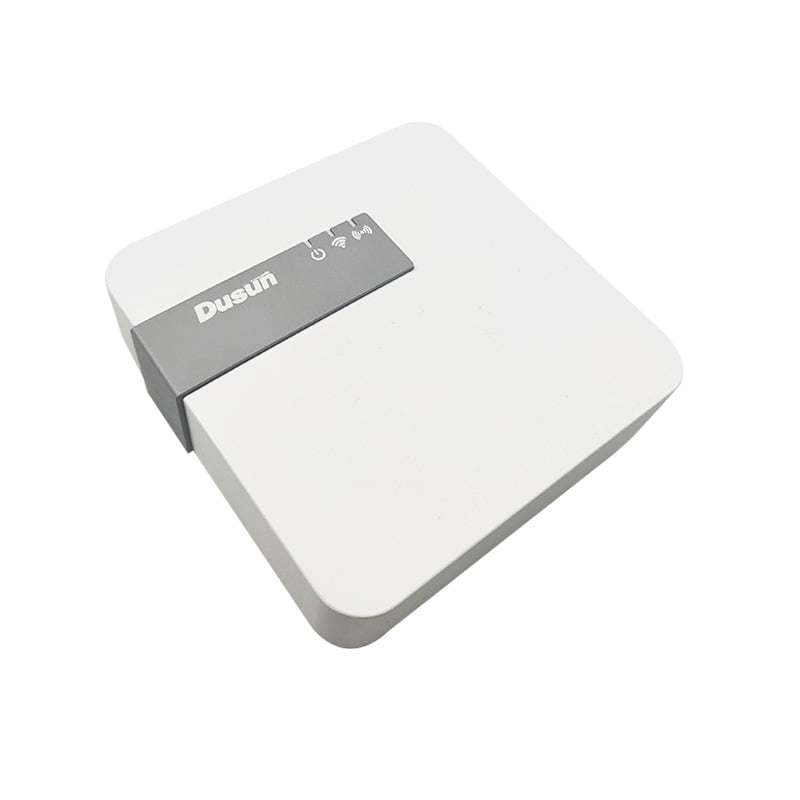

Quick view of DSGW-092-1 ESP32 LTE Bluetooth Gateway
DSGW-092-1 ESP32 LTE Bluetooth gateway is a high-performance solution for remote monitoring applications. With the ability to operate over 4G networks, it ensures efficient data transmission and reliable communication. With Bluetooth 5.2 connectivity powered by the nRF52840 SoC, it is able to achieve seamless communication and control of Bluetooth-enabled devices.
Whether it’s environmental monitoring, asset tracking, or remote sensor data collection, DSGW-092-1 ESP32 4G LTE gateway offers the perfect platform to streamline your monitoring operations.
DSGW-092-1’s BG96 LTE Cat M1 module supports a wide range of frequency bands worldwide, ensuring your remote monitoring tasks are not bound by geographical limitations. Built to deliver excellence, the DSGW-092-1 ESP32 LTE 4G module gateway is your go-to solution for reliable and efficient remote monitoring.
Dimensions and Package of DSGW-092-1 ESP32 4G TE Bluetooth Gateway
Parameters of DSGW-092-1 ESP32 LTE Module Gateway with BLE Connectivity
| CPU | ESP32 |
| System | FreeRTOS |
| RAM | 520 KB |
| Flash | 4 MB |
| Power Supply | Green LED: Power LED normally on when powered on Red LED: BLE LED flash when the signal comes Blue LED: Wi-Fi LED normally on after connecting to network for 1-2 sec |
| Antenna | LTE FPC Antenna, Zigbee or Bluetooth PCB Antenna |
| SIM | 1 * Micro SIM slot |
| Ethernet | 1 * 10/100Mbps WAN/LAN variable |
| Reset | Factory reset button. To reset the Gateway to its original factory settings, press and hold it for more than 10 seconds |
| Wireless protocol | Wi-Fi 2.4G, Bluetooth 5.2 |

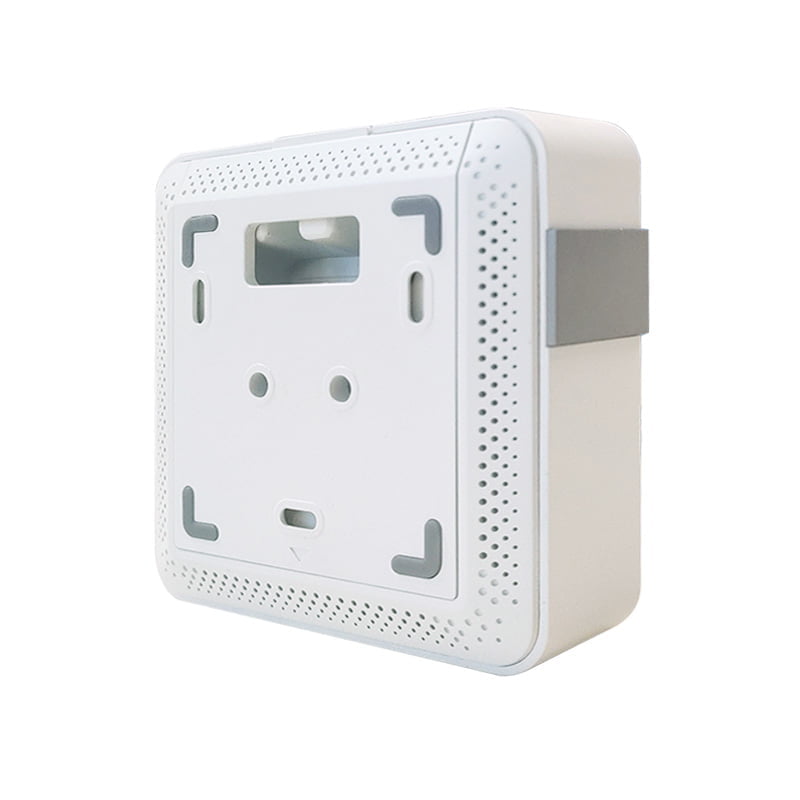

| Installation method | Flat, Ceiling |
| Weight | TBD |
| Operating Temperature | -10℃~55℃ |
| Storage Temperature | -20℃~65℃ |
| Operating humidity | 10%~90% |
| IP rating | IP22 |
Use Case of DSGW-092-1 ESP32 LTE M Gateway with BLE Connectivity
Developer Resources
| Development | ||
|---|---|---|
| [QUICK START] | DSGW-092 SDK Development Document | V1.0 |
| [SDK] | esp-idf official url | V1.1.1 |
| [Firmware packaging] | DSGW092_ESP32_AV1.0.1 | V1.1.5 |
| [Ble module firmware] | DSGW092_BLE_AV1.0.0 | V 1.0.0 |
| [Zigbee module firmware] | ncp_zigbee_MG21_image_RV8(EZSP)-EN | V8(EZSP)-EN |
Connectivity Model List of DSGW-092-1 ESP32 4G LTE Module Gateway
| Model | LTE Cat M1 | Wi-Fi 2.4G | Bluetoth5.2 | Zigbee3.0 |
|---|---|---|---|---|
| DSGW-092-1 | ● | ● | ● |
