Why Choose DSGW-040-7 Wireless Router Gateway?
As its name suggests, DSGW-040-7 is a network device combining the functionalities of a router and a gateway, which means it can be used as a router (proving 4G internet and WiFi connectivity), while incorporate the ability to control IoT devices using BLE, Zigbee, and Z-Wave protocols.
DSGW-040-7 is a cost-effective all-in-one router gateway solution for homes, apartments, offices, and retail spaces. One devices can realize multiple devices functions like home router, BLE gateways, Zigbee gateways, Z-Wave gateways, etc., eliminating the need for purchasing multiple devices. Not only does this save you product costs and simplifies end user maintenance.
DSGW-040-7 supports custom hardware and firmware design, open BSP, and support ODM. More order, more competitive prices. Welcome to quote!
PCBA Board of DSGW-040-7 Wireless Router Gateway
As you can see from this block diagram, the system on module of DSGW-040-7 adopts MediaTek’s MT7620 platform, and runs OpenWrt operating system, with RAM 128 MB and Flash 16MB. A Zigbee module, a BLE module, a Z-Wave module, and a BG96 module (can be changed into BG91 if you need). There is also a LAN and a WAN port. You can choose preferred module and remove unnecessary modules to lower the cost, if it enters into mass production phase. ODM supported!
Difference Between Gateway and Routers
The main difference between router and gateway lies in their functionality and the scope of devices they connect to.
While a router primarily focuses on routing network traffic between different networks, a gateway device, specifically an IoT gateway, is designed to collect data from multiple IoT devices by using various network protocols like BLE, Zigbee, Z-Wave, Wi-Fi, 4G LTE, and more.
IoT gateways are frequently used as a smart hub because of its multiprotocol features able to connect and manage a wide range of IoT devices. In addition to this networking capabilities, IoT gateways often offers additional interfaces like HDMI, USB, RS485, RS232, I2C, SPI, PCIe, GOPIs, etc., making them a versatile network device for connecting and controlling a range of IoT devices.
Certain powerful IoT gateways also have the capability to process device data locally, which lowers bandwidth fees and enhances security. These gateways are known as IoT edge computing gateways. The enclosure and installation of IoT gateways can be customized to suit specific environments, such as industrial gateways, in order to ensure optimal functionality and placement.
Parameters of DSGW-040-7 Wireless Router Gateway
| Category | Specifications |
| CPU | MT7620 |
| System | OpenWrt |
| RAM | 128MB |
| Flash | 16MB |
| Network Interface | 1 * 10/100 Mbps LAN port, 1 * 10/100 Mbps WAN port |
| Indicator LEDs | • The BLE LED flashes when a signal is received. • The Network LED indicates RED when no establishing a network connection. • The Network LED indicates GREEN when a network connection is established. |
| Power Supply | DC Input, input voltage range is 4.5V to 5V. The power seat aperture is 3.5mm. The needle diameter is 1.35mm and is positive. The power adapter: 100-240V 50/60HZ. Output is 5V/2A. |
| Reset | Factory reset button. To reset the Gateway to its original factory settings, press and hold it for more than 10 seconds |
| Installation | Flat, Ceiling |
| Weight | TBD |
| Operating Temperature | -10℃~55℃ |
| Storage Temperature | -40℃~65℃ |
| Operating humidity | 10%~90% |
| IP Rating | IP 22 |

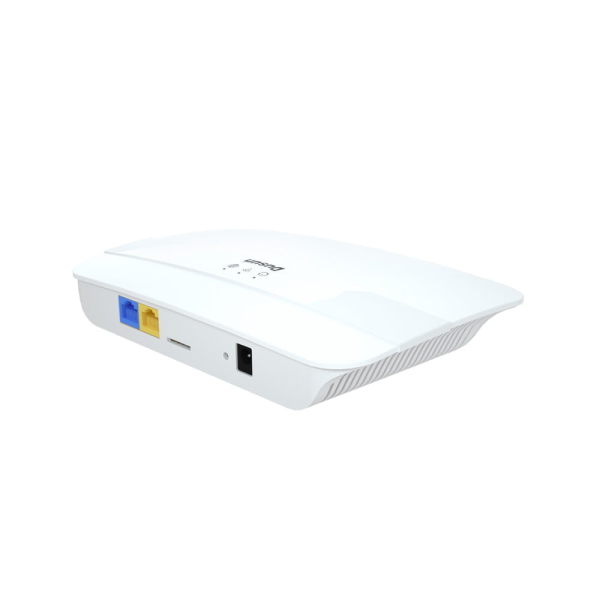

Enclosure and Interfaces of DSGW-040-7 Wireless Router Gateway

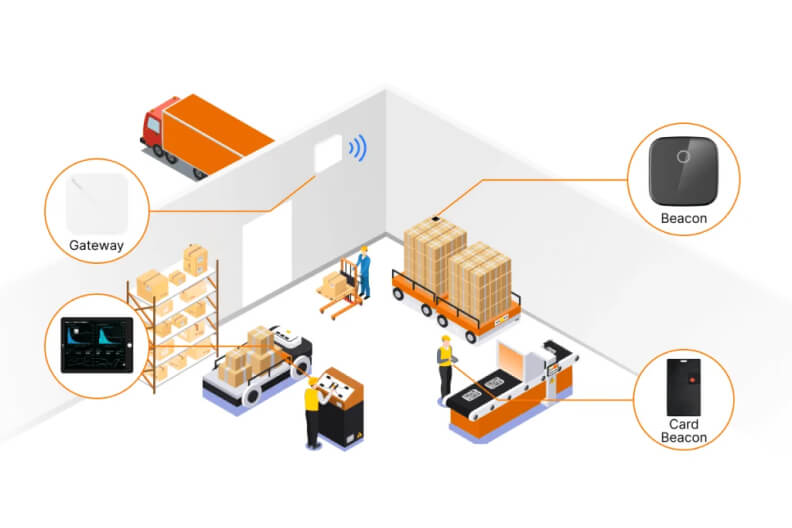

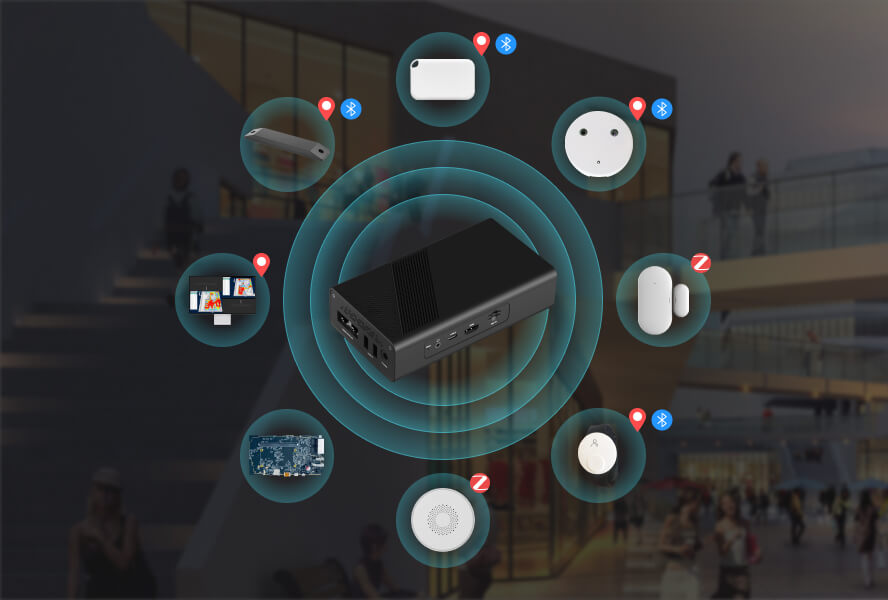

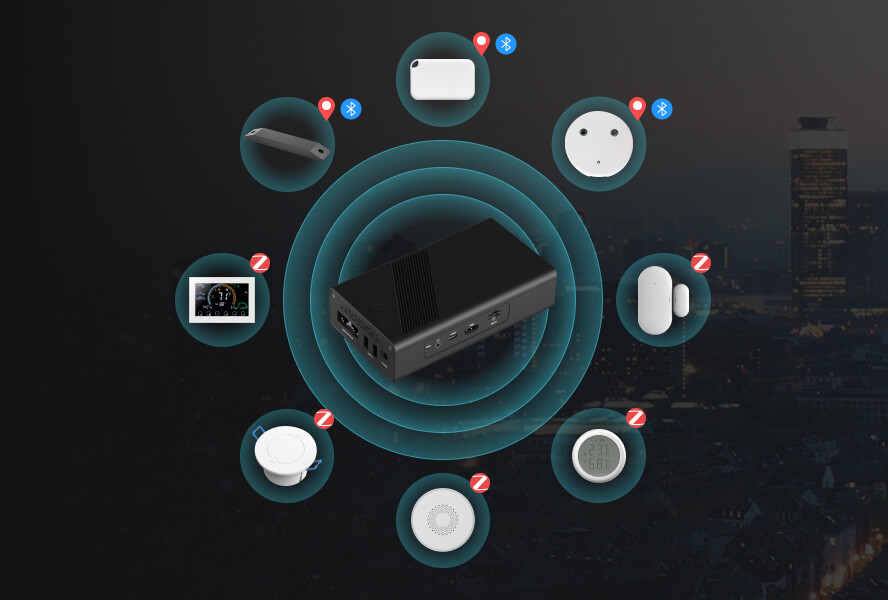

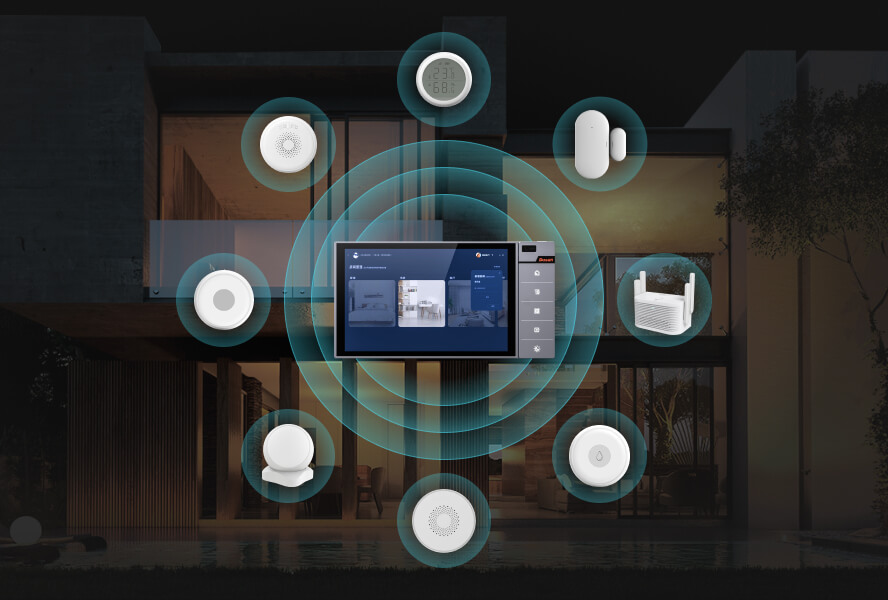

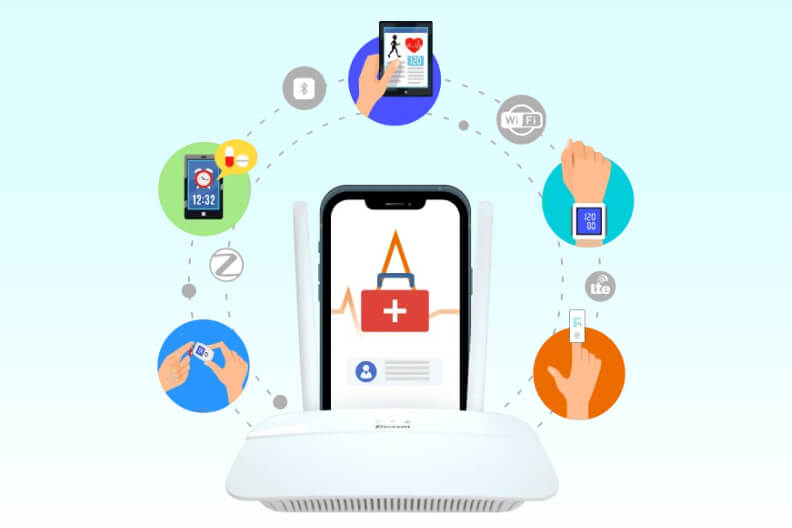

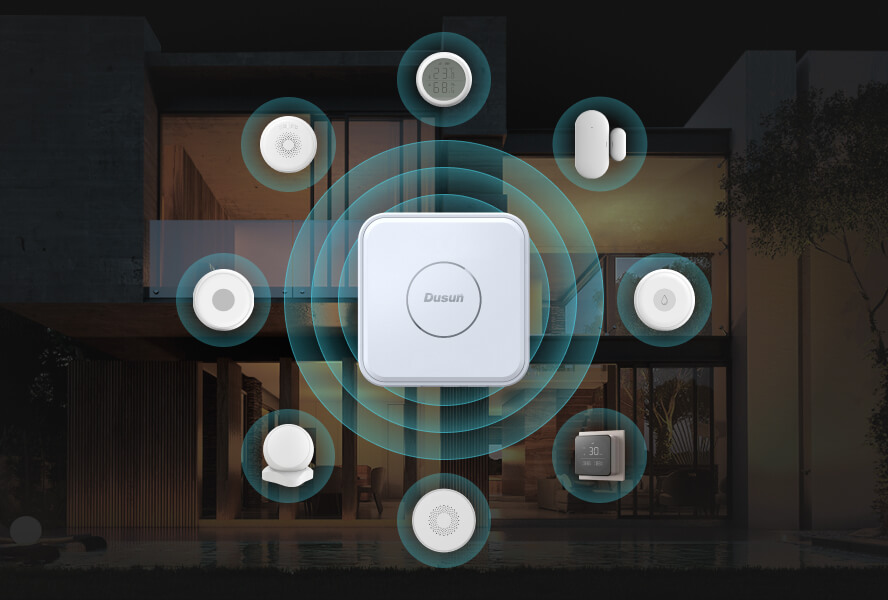

Applications of DSGW-040-7 Wireless Router Gateway
How to Set up DSGW-040-7 Wireless Router Gateway?
When power is inserted, both the green and yellow LEDs will illuminate. Wait until the yellow LED turns off and the green LED starts blinking. Once the green LED remains lit, the gateway has successfully booted up.
Perform a reset function by pressing and holding the button for 10 seconds. This action will erase all matched information.
The system initialization is indicated by a green LED light. A yellow LED light indicates that Zigbee is operational. When the gateway talks to Zigbee sensors, it blinks. The LED will likewise flicker while in pairing mode.The red LED light signifies cloud connectivity. It goes out if the gateway connects successfully. It will stay lighted in the event of a connection failure.
The Wi-Fi supports both AP and client modes, which can be switched as needed. Enter the AP name and the password shown on the user manual. For Zigbee, BLE,Z-Wave operation, please read our user manual.
FAQs of DSGW-040-7 Wireless Router Gateway
What Zigbee protocols are supported by DSGW-040-7 Wireless Router Gateway?
DSGW-040-7 Wireless Router Gateway support full Zigbee stack and Zigbee 3.0, also supports ZHA, GreenPower, ZLL, and more. It is compatible with most clusters of ZigBee devices, such as Zigbee door sensors, Zigbee smoke detectors, Zigbee 3.0 pir motion sensors, temperature and humidity sensors, smart plugs, smart lamps, water leak sensors, smart curtain motors, and so on. The gateway device can be added via the web user interface or cloud command. Also, welcome to read this tutorial on using Zigbee2MQTT to send temperature sensor data to the chosen server.
What BLE protocols are supported by DSGW-040-7 Wireless Router Gateway?
DSGW-040-7 router gateway supports a wide range of BLE protocols including iBeacon, Eddystone, BLE sensors data transferring, and BLE SIG mesh gateway function. Here is an example of how to connecting BLE-based pulse oximeter with BLE gateways.
Z-Wave 800 vs 700, what’s the difference?
Z-Wave 800 is the latest version of Silicon Labs Z-Wave series SoC launched in 2021. while Z-Wave 700 series was published in 2019.
The 700 series SoC offered enhancements on farther wireless range, faster wireless speed, and longer battery life. Z-Wave 800 SoCs take a further leap forward with extremely low power consumption, 10+ years of coin cell battery life, wireless range beyond 1.5 miles, robust security, and more.
Can develop matter on DSGW-040-7 Wireless Router Gateway?
Yes, we have a good partnership with Silicon Labs and all of our gateway devices use its wireless SoCs. If you need, we can custom a Matter gateway for you, but there is a MOQ required.
Does the DSGW-040-7 Router Gateway support OTA?
Sure, the smart gateway’s firmware can be upgraded over the network.
Is DSGW-040-7 router gateway support MQTT protocol?
The gateway supports the MQTT protocol for cloud integration. You can view our smart home solutions to know more details.
Is DSGW-040-7 router gateway an IoT router?
It is indeed possible to use DSGW-040-7 as an IoT router. It functions as an IoT gateway to connect and manage IoT devices, bridging the gap between IoT devices and the internet. It also allows the cloud server to remotely access data and issue control commands. As an IoT router, it also routes data packets across networks to and from your IoT devices. To understand why, you can learn more about the principles underlying Zigbee router gateways.
