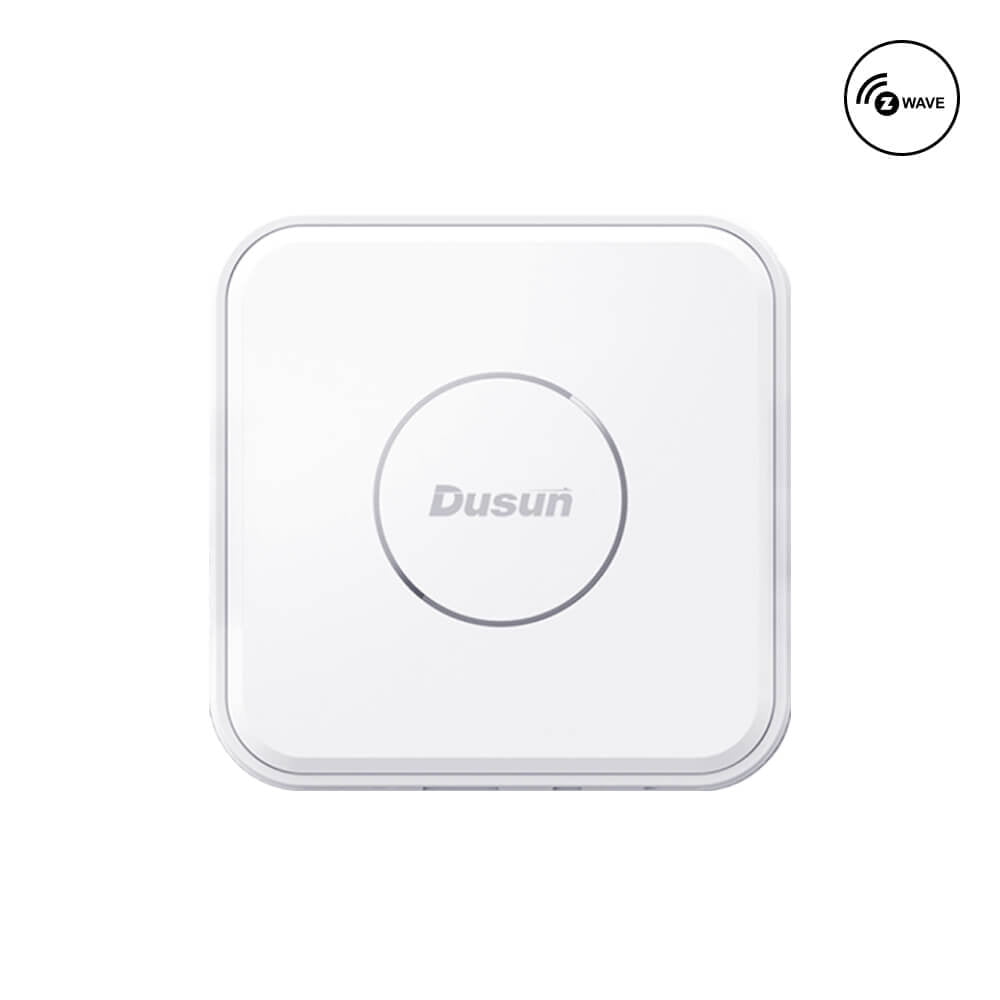

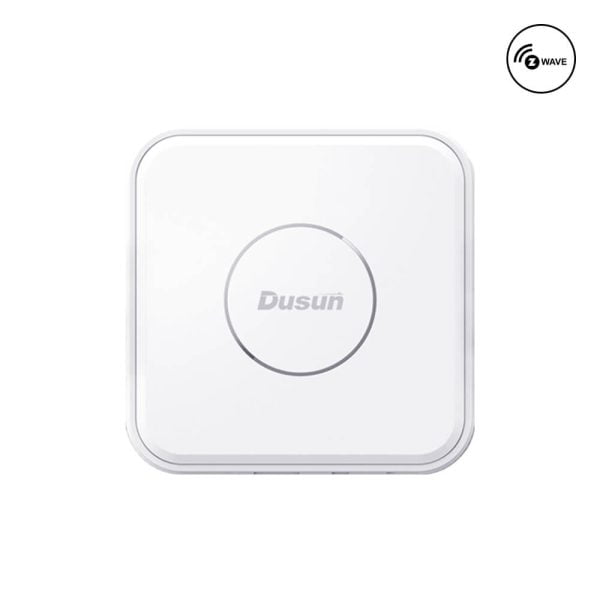

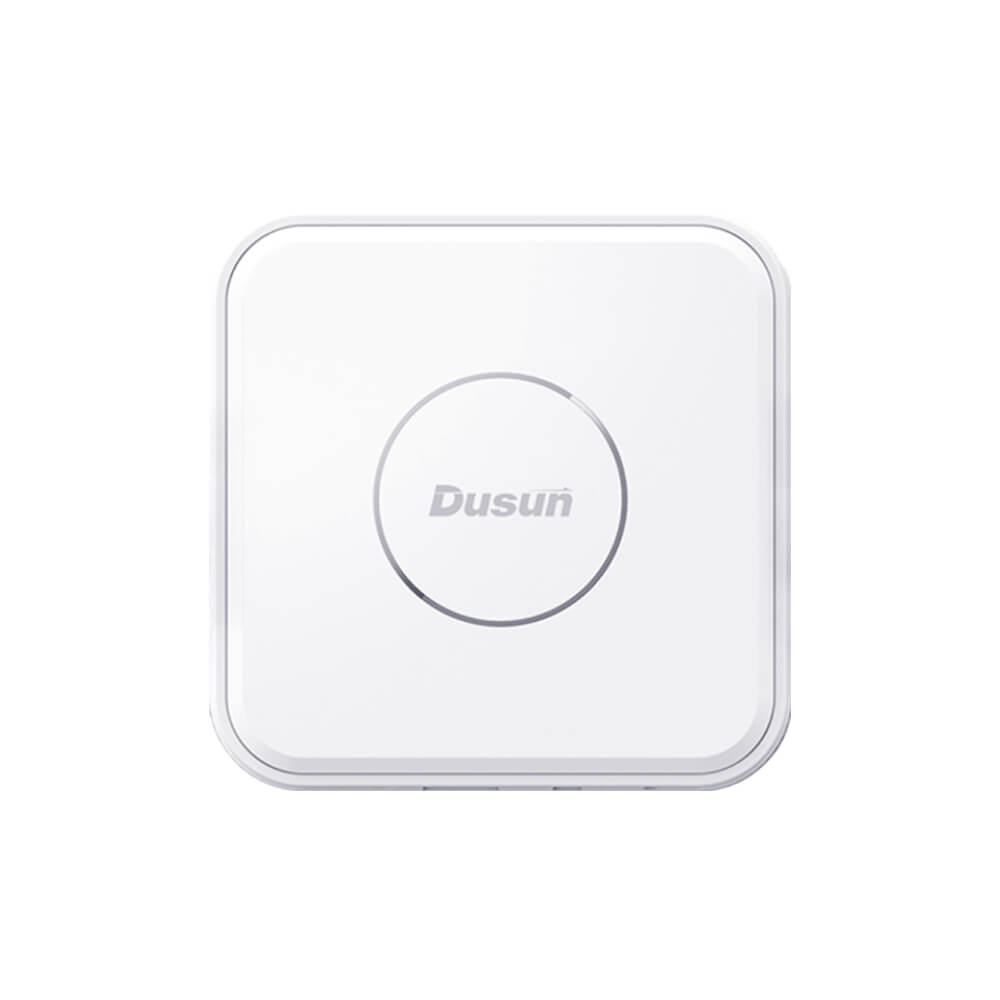

Quick View of DSGW-210-A-23 Z-Wave WiFi 2.4G/5G Hub Gateway
DSGW-210-A-23 Z-Wave WiFi hub is designed to seamlessly integrate energy-efficient Z-Wave technology with dual-band WiFi connection, elevate IoT-based smart home automation experience.
Engineered around Silicon Labs’ cutting-edge ZGM130S Z-Wave 700 SiP Module, this hub unlocks the potential of your smart home through its compatibility with a plethora of devices—motion sensors, door/window sensors, access control, appliances, lighting, security networks, and beyond. Whether you seek to enhance security, streamline energy management, or redefine the way you interact with your living space, the DSGW-210-A-23 stands ready to accommodate.
With its dual-band WiFi feature, DSGW-210-A-23 Z-Wave over WiFi hub gateway serves as the cornerstone of a versatile smart home ecosystem. Whether you’re remotely adjusting your thermostat or keeping a watchful eye on your property, it is able to ensure stable and swift network connections that set a new standard for responsiveness.
Features of DSGW-210-A-23 Z-Wave WiFi 2.4G/5G Hub Gateway
Multiple Backhaul Connectivities
Capturing data from end devices and sending it to the cloud via Wi-Fi 2.4G/5G, and Ethernet.
Multi-Protocol Gateway
Built-in both Z-Wave Module. In addition to these, it also supports custom protocols integration such as Wi-Fi 2.4/5G.
Supporting Multiple Operation System(OS)
Offers powerful hardware architectures for running Debian11, Ubuntu20.04, Android11, Yocto4.0.
High Programmable
Our Gateway includes a comprehensive set of resources and services that enable the IoT Gateway developer to build custom firmware from the bottom layer of the hardware. It provides a highly secure, common platform for the IoT Gateway Developers while cutting costs and time-to-market.
Pre-Certified
Carrier-certified for immediate deployments and meets a comprehensive range of regulatory and industry standards worldwide. Accelerating your product development and get to market faster.
Modular design
Hardware Overview of DSGW-210-A-23 Z-Wave WiFi 2.4G/5G Hub Gateway
Parameters of DSGW-210-A-23 Z-Wave WiFi 2.4G/5G Hub Gateway
| CPU | RK3328 Quad-core Cortex A53 |
| System | Debian 11,Ubuntu 20.04, Android11,Yocto4.0 |
| RAM | Up to 1GB |
| eMMC | Up to 8GB |
| Power Supply | USB Type-C 5V/3A |
| Reset | Factory reset button. To reset the Gateway to its original factory settings, press and hold it for more than 10 seconds |
| Switch | On/Off power |
| Network Interface | 1 * WAN/LAN variable |
| USB | 1 * USB2.0 |
| Indicator LEDs(RGB) | 1). Power & battery LED 2). Wireless LED 3）LTE indicator |
| Antenna | Z-Wave/Wi-Fi FPC Antenna |
| Installation method | Flat, Ceiling, Wall Mounting |
| RTC | Real-Time Clock operated from an onboard battery |
| Hardware encryption | ECC608B |
| Operating Temperature | -10℃~60℃ |
| Storage Temperature | -40℃~65℃ |
| Operating humidity | 10%~90% |
| IP rating | IP22 |
Use Cases of DSGW-210-A-23 Z-Wave WiFi 2.4G/5G Hub Gateway
Developer Resources of DSGW-210-A-23 Z-Wave WiFi 2.4G/5G Hub Gateway
| Development | ||
|---|---|---|
| [QUICK START] | DSGW-210 Smart Programmable Gateway Quick Start Guide | V2.0 |
| [SDK] | DSGW-210-Debian_sdk_RV1.1.7 | V1.1.7 |
| [WEB Description] | Web-Description-Gateway-OldLuci .pdf | |
| [WEB Description] | DSGW-210-Web-Description | imageRV1.2.3 |
| [Language C Sample Code] | Zigbee_sample_code_Amber_host_EZSP_V8.tar | V8 |
| [Language C Development Guide] | Zigbee sample code ezsp development guide v1.0 | V1.0 |
| [Language Python Sample Code] | DSGW-210_Python_sample.tar | |
| [Language Python Development Guide] | DSGW-210 Python Development Guide V1.0 | V1.0 |
| [Firmware packaging] | DSGW-210-Debian_image_RV1.2.0 | V1.2.0 |
| [Zigbee module firmware] | DSM-04B-zigbee_image_RV8(EZSP)Version：ezsp ver 0x08 | V ezsp ver 0x08 |
| [Ble module firmware] | DSI-0177-AMBER-BLE-NCP_AV3.2.4.0129 | V 3.2.4 |
| [Z-wave module firmware] | DSGW-210-Zwave_image_RV7.18 Version：Z-Wave 7.18 | V Z-Wave 7.18 |
| Yocto | ||
|---|---|---|
| [QUICK START] | DSGW-210-Yocto Development Document.V1.0.pdf | V1.0 |
| [SDK] | DSGW-210_sdk-yocoto_AV1.0.0.0.tar.gz | V1.0.0.0 |
| [Firmware packaging] | DSGW-210-Yocto_image_AV1.0.0.1.tar.gz | V1.0.0.1 |
| [Zigbee module firmware] | DSM-04B-zigbee_image_RV8(EZSP)Version：ezsp ver 0x08 | V8 |
| [Ble module firmware] | DSI-0177-AMBER-BLE-NCP_AV3.2.4.0129 | V3.2.4.0129 |
| [Z-wave module firmware] | DSGW-210-Zwave_image_RV7.18 Version：Z-Wave 7.18 | V7.18 |
| Ubuntu | ||
|---|---|---|
| [QUICK START] | DSGW-210-Ubuntu Development QuickStart.V1.0.pdf | V1.0 |
| [SDK] | DSGW-210_sdk-ubuntu_AV1.0.0.2.tar.gz | V1.0.0.2 |
| [Firmware packaging] | DSGW-210_image-Ubuntu_AV1.0.0.2.tar.gz | V1.0.0.2 |
| [Zigbee module firmware] | DSM-04B-zigbee_image_RV8(EZSP)Version：ezsp ver 0x08 | V8 |
| [Ble module firmware] | DSI-0177-AMBER-BLE-NCP_AV3.2.4.0129 | V3.2.4.0129 |
| [Z-wave module firmware] | DSGW-210-Zwave_image_RV7.18 Version：Z-Wave 7.18 | V7.18 |
| Tools | ||
|---|---|---|
| [Burning tool] | AndroidTool_Release | |
| [Upgrade_tool] | DriverAssitant_v4.91 | V4.9.1 |
| Third-Party Software | ||
|---|---|---|
| [Node-RED] | node-red | |
| [Docker] | docker | |
| [Ble2Mqtt] | BLE2Mqtt message API v1.7 | V1.7 |
| [Zigbee2Mqtt] | Zigbee2Mqtt Source Code & How To Install and Deploy[Dusun] | V2.2 |
| [Z-Wave2Mqtt] | Z-Wave2Mqtt(oz) of Dusun Gateway v1.0 | V1.0 |
| [Openz-wave] | OpenZwave Tutorial | |
| [Openthread] | OpenThread For OTBR | |
| [Matter] | Matter Chip-tool Document | |
Model List of DSGW-210-A-23 Z-Wave WiFi 2.4G/5G Hub Gateway
Category B (Built by Order)
| Feature | Wi-Fi 2.4G/5G | Bluetooth 5.2 | Zigbee 3.0 | Z-Wave | LTE CatM1 | LTE Cat1 | Li Battery | LTE Cat4 |
|---|---|---|---|---|---|---|---|---|
| DSGW-210-A-23 | ● | ● |
