Smart Gateway S Serial Specification

Table of Contents

Product Name: S-Serial Smart Gateway

Model Name: DSGW-030

DSGW 030 1


DSGW 031 1


S serial hub 5 1



DSGW-03X-2/ DSGW-03X-4

DSGW 030 3


Model list

Model RAM Flash USB Wi-Fi
DSGW-030-1 128MB 16MB
DSGW-030-2 128MB 16MB
DSGW-030-3 128MB 16MB
DSGW-030-4 128MB 16MB
DSGW-030-5 128MB 16MB
DSGW-031-1 128MB 16MB
DSGW-031-2 128MB 16MB
DSGW-031-3 128MB 16MB

1. Introduction

1.1 Purpose& Description

The Smart Gateway S Serial is a gateway product used in the smart home, intelligent security industry, and pension services.

It is a central device, that supports multiple wireless protocols including Wi-Fi and zigbee3.0, BLE, and Z-WAVE. There is a USB port that different between DSGW-030 and DSGW-031.

The user can connect to the network through Wi-Fi and Ethernet. Besides, smart sensors can be connected through zigbee3.0, BLE, and Z-WAVE.

1.2 Product Feature Summary

  • OS: [email protected] OpenWrt
  • Processor: MTK7688 (MIPS24KEc(580MHZ))
  • RAM: 128MB Free Space:16MB (development Space for user)
  • Flash: 16MB Free Space:8MB (development Space for user)
  • Support IEEE802.11n,IEEE802.11g,IEEE 802.11b Protocol
  • Support Bluetooth 5.2
  • Support ZigBee3.0
  • Support Z-WAVE
  • One WAN/LAN variable network port
  • USB port

1.3 Hardware block diagram

image 43

2. Mechanical Requirement

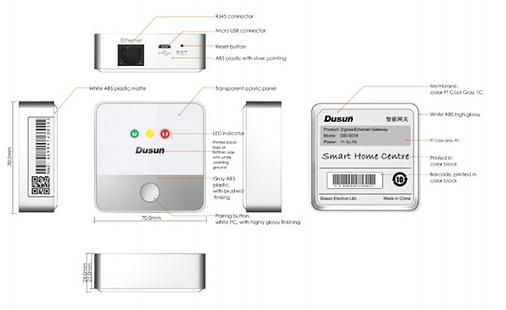

2.1 Drawings

image 44

2.2 Interface

image 45

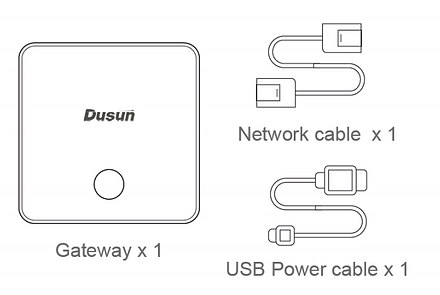

2.3 Item list

image 46

3. Specifications

3.1 Technical Specification

Category ​Specifications
Power Adapter Input:100V~240V AC/50~60HZ Output:5V/2A, Micro USB
Interface WLAN/LAN port, USB Port
Indicator LEDs Power LED normally on when powered on

Zigbee / BLE / Z-WAVE LED is flash when the signal come

Wi-Fi LED normally on after connecting to Wi-Fi for 1-2 sec
Reset Button The reset button is hole button, After pressing the reset button for more than 5 seconds, the Gateway will be restored to the factory settings.
Operating Temperature -10℃~70℃

3.2 Performance Requirement

Wi-Fi Performance

  • IEEE wireless LAN standard:
  • IEEE802.11n; IEEE802.11g; IEEE 802.11b
  • Data Rate:
  • IEEE 802.11b Standard Mode:1,2,5.5,11Mbps
  • IEEE 802.11g Standard Mode:6,9,12,18,24,36,48,54 Mbps
  • IEEE 802.11n: MCS0~MCS7 @ HT20/ 2.4GHz band
  • Sensitivity:
  • HT40 MCS7 : [email protected]% PER(MCS7) /2.4GHz band
  • HT20 MCS7 : [email protected]% PER(MCS7) /2.4GHz band
  • Transmit Power:
  • IEEE 802.11n: 16dBm @HT20/40 MCS7 /2.4GHz band
  • IEEE 802.11g: 16dBm @54MHz
  • IEEE 802.11b: 18dBm @11MHz
  • Wireless Security: WPA/WPA2, WEP, TKIP, and AES
  • Working mode : Bridge、Gateway、AP Client
  • Range: 50 meters minimum, open field
  • Transmit Power:17dBm
  • Highest Transmission Rate: 300Mbps
  • Frequency offset: +/- 50KHZ
  • Frequency Range (MHz): 2412.0~2483.5
  • Low Frequency (MHz):2400
  • High Frequency (MHz):2483.5
  • E.i.r.p (Equivalent Isotopically Radiated power) (mW)<100mW
  • Bandwidth (MHz):20MHz/40MHz

Zigbee 3.0 Performance

  • Range: 100 meters minimum, open field
  • Transmit Power:17.5dBm
  • Highest Transmission Rate: 300Mbps
  • Frequency offset: +/- 20KHZ
  • Receiving Sensibility:-94dBm
  • Frequency Range (MHz):2401.0~2483.5
  • Low Frequency (MHz):2400
  • High Frequency (MHz):2483.5
  • E.i.r.p (Equivalent Isotopically Radiated power) (mW)<100mW
  • Bandwidth (MHz):5MHz
  • Modulation: OQPSK

Z-WAVE Performance

  • TX power: TX power up to 13dBm
  • RX sensitivity: @100kbps -97.5dBm
  • Range: 100 meters minimum, open filed
  • Default Frequency: 916MHz( Different country with different frequency) Pls check the Z-wave frequency band table(Table 3-1)

Bluetooth Performance

  • Bluetooth Protocol: Bluetooth 5.2
  • TX Power: 19.5dBm
  • Range: 150 meters minimum, open filed
  • Receiving Sensibility: [email protected]%BER
  • Frequency offset: +/-20KHZ



  • 10/100Mbps​​

Table 3-1 Z-WAVE frequency band table
S serial 2 1 1

Setting the corresponding z-wave frequency band according to the Development user manual.

S serial 3 1

4. QA Requirements

4.1 Quality & Testing Information

Information Description Standard(Yes) custom(No)
ESD Testing Yes
RF Antenna Analysis Yes
Environmental Testing Yes
Reliability Testing Yes
Certification FCC, CE, ZigbeeCertification, Bluetooth(BQB), RoHs

5. Software requirement

This software will be based on the MTK platform. It runs on the OpenWrt system.

It supports the following features:

  • Wi-Fi
  • Zigbee3.0
  • OTA
  • MQTT

5.1 Defines

5.1.1 Boot up

When inserting the power, The green and yellow Led are lightings, the Yellow LED is going out and the green LED is blinking, the green led is lighting, and the gateway boot up successfully.

5.1.2 Reset

Keep pressing the button for 5s. All matching information is eliminated.

5.1.3 Indicator LED

  • Green LED: it’s used to indicate system startup
  • Yellow LED: it’s used to indicate the operation of the Zigbee and z-wave. When the gateway communicate with sensor, the led will be blink.  If let the gateway goes into pairing mode, the led will be blinking.
  • Red LED: it’s used to indicate the gateway connects with the cloud, if the gateway connects successfully, the Red LED goes out, and failed is lighting.

5.1.4 Wi-Fi Configuration

The Wi-Fi supports the AP mode and client mode. It can be switched.

The name of AP: xxxxxxx

Pass word: xxxxxxx

5.1.5 Zigbee Configuration

The ZigBee stack is version 3.0, it can support ZHA, Greenpower, ZLL, etc. It supports the most cluster of ZigBee devices.

Like door sensors, leakage sensors, Motion sensors, Tem&Hum sensors, the smart plug, the smart lamp, smoke sensors, curtains, etc. It can add the device by the web or command.

5.1.6 OTA

The gateway can be upgradeable over the network.

5.1.7 MQTT

The gateway supports the MQTT protocol to connect to the cloud.

6. Application

  1. The Smart Gateway collects information about Beacon nearby, including RSSI, MAC, etc., once per second.
  2. The Smart Gateway sends the Beacon information to Cloud via Wi-Fi.
  3. The Smart Gateway supports the TCP/IP, UDP protocol, MQTT, and LWM2M protocol.
  4. The Smart Gateway supports connecting ZigBee and z-wave devices.

7. Certification List​

NO. Certificate Title Abstract Certification
1 Zigbee Zigbee alliance Figure 1 Zigbee Certificate
2 BQB Bluetooth TCRL 2019-1 Figure 2 BQB Certificate
3 CE Healthy, Safety Figure 3 CE Certificate
4 TCB Frequency2412.0 – 2462.0 Figure 4 FCC(DTS-TC956050)
5 FCC Frequency 2402.0/2405.0 - 2480.0 Figure 5 FCC(DXX-TC171366)
6 Canada IC Frequency2412.0 – 2462.0 Figure 6 Canada IC

Dusun-Programmable and Multiprotocol Mini IoT Gateway

S serial hub 5 1




WechatIMG359 2


Zigbee Certification

S serial zigbee 1

BQB Certification

S serial BQB 1

CE Certification

S serial CE 1


S serial FCC 2

FCC (DXX-TC171366)

S serial FCC 1 1

Canada IC

S serial CandaIC 1
