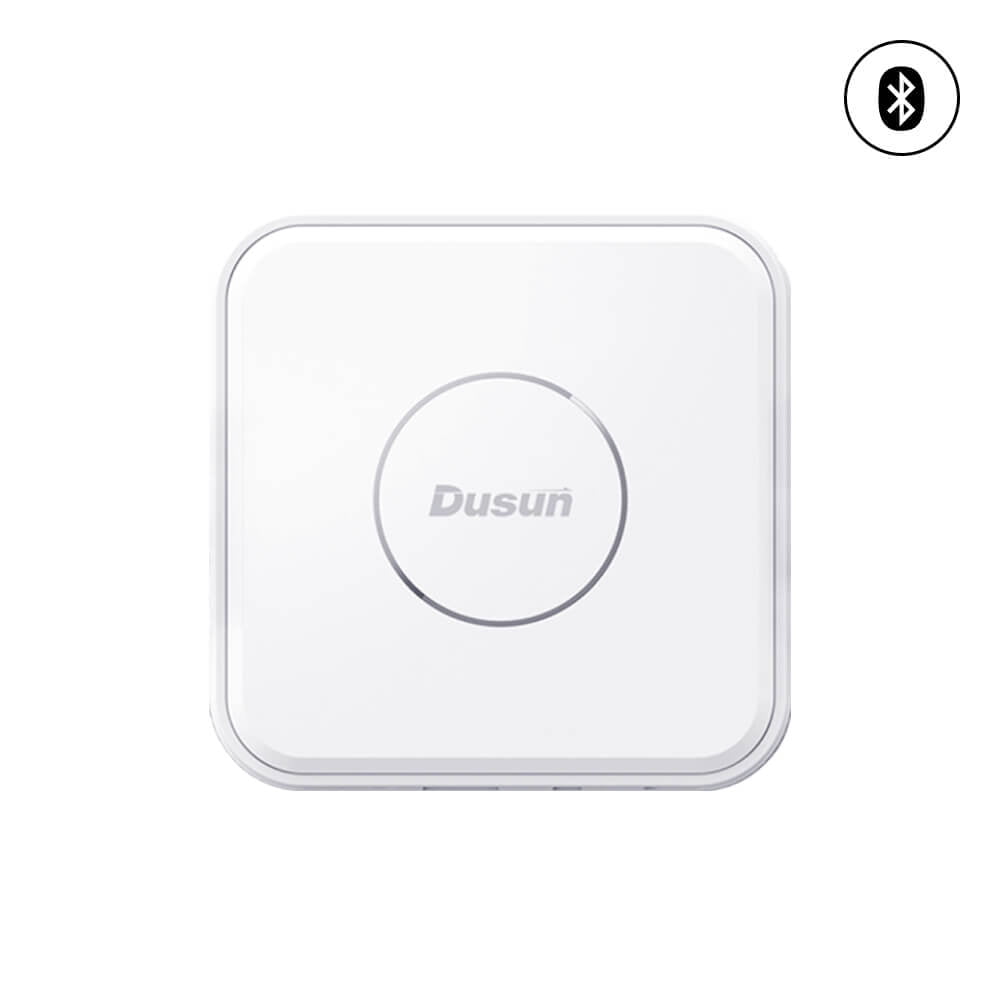

Overview of DSGW-210-A-10 BLE WiFi Gateway
DSGW-210-A-10 BLE WiFi gateway is well-suited for BLE-based asset and personnel tracking systems. It can scan and read transmitted data from nearby BLE Beacons, making it a central management device for businesses and organizations to implement Bluetooth RSSI positioning solution.
With WiFi connectivity, DSGW-210-A-10 gateway can bridge the collected data from BLE beacons to the internet, in order for centralized real-time monitoring, gaining insights from data analysis, and optimizing the management.
A Variety of BLE2MQTT APIs
Dusun IoT has rich experiences in BLE2QMTT API development and is willing to offer BLE2MQTT message format on how our BLE gateways integrate and connect BLE devices to the MQTT server. Read our BLE 5 API sample program on gateway reading data from a BLE RPM pulse oximeter.
Features of DSGW-210-A-10 BLE WiFi Gateway
Wireless and Wired Network Connectivity
With WiFi 2.4/5 GHz and Ethernet connectivity, the BLE WiFi gateway can capture data from BLE devices and send it to the cloud in wired or wireless connection.
Silicon Lab Bluetooth Chipset
Designed with Silicon Labs’ Bluetooth Low Energy SoC, the BLE WiFi gateway deliver a high-performance and easy-to-use Bluetooth IoT solution optimized for battery powered applications.
Programmable and Customizable
The BLE WiFi gateway can run Debian11, Ubuntu20.04, Android11, Yocto4.0, and you can develop and build custom firmware from the bottom layer of the hardware.
Gateway User Interface
The BLE WiFi gateway has a Luci user interface for users to configure WiFi AP and LAN/WAN network configuration, MQTT broker & SSL certification, BLE device connection (MAC address, filtering options, report interval, RSSI, etc.), AWS/ Azure/Thingsboard IoT Cloud connection, LED indicator operations, as well as other advanced settings. Document here.
The BLE WiFi gateway can be used to connect a wide range of BLE devices including smart locks to realize the functions of remote unlocking, real-time status monitoring, and other remote functions. Dusun IoT welcomes and offer assistance in developing related firmware.
Pre-Certified to Lower Enginneering Cost
The BLE WiFi gateway is carrier-certified, which means it has already met a comprehensive range of regulatory and industry standards worldwide, and can accelerate your product development.
Inner Board and Packaging Info of DSGW-210-A-10 BLE WiFi Gateway
Hardware Parameters of DSGW-210-A-10 BLE WiFi Gateway
| CPU | RK3328 Quad-core Cortex A53 |
| System | Debian 11,Ubuntu 20.04, Android11,Yocto4.0 |
| RAM | Up to 1GB |
| eMMC | Up to 8GB |
| Power Supply | USB Type-C 5V/3A |
| Reset | Factory reset button. To reset the Gateway to its original factory settings, press and hold it for more than 10 seconds |
| Switch | On/Off power |
| Network Interface | 1 * WAN/LAN variable |
| USB | 1 * USB2.0 |
| Indicator LEDs(RGB) | 1). Power & battery LED 2). Wireless LED 3）LTE indicator |
| Antenna | BLE PCB Antenna, Wi-Fi FPC Antenna |
| Installation method | Flat, Ceiling, Wall Mounting |
| RTC | Real-Time Clock operated from an onboard battery |
| Hardware encryption | ECC608B |
| Operating Temperature | -10℃~60℃ |
| Storage Temperature | -40℃~65℃ |
| Operating humidity | 10%~90% |
| IP rating | IP22 |
Use Cases of DSGW-210-A-10 BLE WiFi Gateway
Developer Resources of DSGW-210-A-10 BLE WiFi Gateway
| Development | ||
|---|---|---|
| [QUICK START] | DSGW-210 Smart Programmable Gateway Quick Start Guide | V2.0 |
| [SDK] | DSGW-210-Debian_sdk_RV1.1.7 | V1.1.7 |
| [WEB Description] | Web-Description-Gateway-OldLuci .pdf | |
| [WEB Description] | DSGW-210-Web-Description | imageRV1.2.3 |
| [Language C Sample Code] | Zigbee_sample_code_Amber_host_EZSP_V8.tar | V8 |
| [Language C Development Guide] | Zigbee sample code ezsp development guide v1.0 | V1.0 |
| [Language Python Sample Code] | DSGW-210_Python_sample.tar | |
| [Language Python Development Guide] | DSGW-210 Python Development Guide V1.0 | V1.0 |
| [Firmware packaging] | DSGW-210-Debian_image_RV1.2.0 | V1.2.0 |
| [Zigbee module firmware] | DSM-04B-zigbee_image_RV8(EZSP)Version：ezsp ver 0x08 | V ezsp ver 0x08 |
| [Ble module firmware] | DSI-0177-AMBER-BLE-NCP_AV3.2.4.0129 | V 3.2.4 |
| [Z-wave module firmware] | DSGW-210-Zwave_image_RV7.18 Version：Z-Wave 7.18 | V Z-Wave 7.18 |
| Yocto | ||
|---|---|---|
| [QUICK START] | DSGW-210-Yocto Development Document.V1.0.pdf | V1.0 |
| [SDK] | DSGW-210_sdk-yocoto_AV1.0.0.0.tar.gz | V1.0.0.0 |
| [Firmware packaging] | DSGW-210-Yocto_image_AV1.0.0.1.tar.gz | V1.0.0.1 |
| [Zigbee module firmware] | DSM-04B-zigbee_image_RV8(EZSP)Version：ezsp ver 0x08 | V8 |
| [Ble module firmware] | DSI-0177-AMBER-BLE-NCP_AV3.2.4.0129 | V3.2.4.0129 |
| [Z-wave module firmware] | DSGW-210-Zwave_image_RV7.18 Version：Z-Wave 7.18 | V7.18 |
| Ubuntu | ||
|---|---|---|
| [QUICK START] | DSGW-210-Ubuntu Development QuickStart.V1.0.pdf | V1.0 |
| [SDK] | DSGW-210_sdk-ubuntu_AV1.0.0.2.tar.gz | V1.0.0.2 |
| [Firmware packaging] | DSGW-210_image-Ubuntu_AV1.0.0.2.tar.gz | V1.0.0.2 |
| [Zigbee module firmware] | DSM-04B-zigbee_image_RV8(EZSP)Version：ezsp ver 0x08 | V8 |
| [Ble module firmware] | DSI-0177-AMBER-BLE-NCP_AV3.2.4.0129 | V3.2.4.0129 |
| [Z-wave module firmware] | DSGW-210-Zwave_image_RV7.18 Version：Z-Wave 7.18 | V7.18 |
| Tools | ||
|---|---|---|
| [Burning tool] | AndroidTool_Release | |
| [Upgrade_tool] | DriverAssitant_v4.91 | V4.9.1 |
| Third-Party Software | ||
|---|---|---|
| [Node-RED] | node-red | |
| [Docker] | docker | |
| [Ble2Mqtt] | BLE2Mqtt message API v1.7 | V1.7 |
| [Zigbee2Mqtt] | Zigbee2Mqtt Source Code & How To Install and Deploy[Dusun] | V2.2 |
| [Z-Wave2Mqtt] | Z-Wave2Mqtt(oz) of Dusun Gateway v1.0 | V1.0 |
| [Openz-wave] | OpenZwave Tutorial | |
| [Openthread] | OpenThread For OTBR | |
| [Matter] | Matter Chip-tool Document | |
Connectivity Options of DSGW-210-A-10 BLE WiFi Gateway
Category B (Built by Order)
| Feature | Wi-Fi 2.4G/5G | Bluetooth 5.2 | Zigbee 3.0 | Z-Wave | LTE CatM1 | LTE Cat1 | Li Battery | LTE Cat4 |
|---|---|---|---|---|---|---|---|---|
| DSGW-210-A-10 | ● | ● |
FAQs of DSGW-210-A-10 BLE WiFi Gateway
What is BLE WiFi gateway?

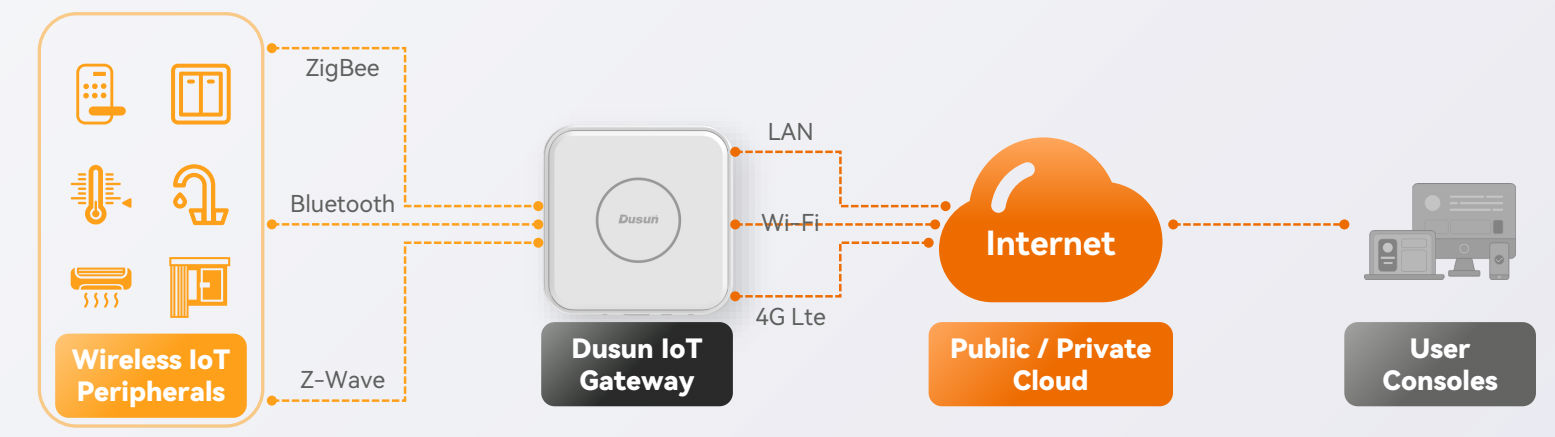

A BLE WiFi gateway serves as an n intermediary between Bluetooth beacon & sensor devices and the cloud server, facilitating the transfer of data from the devices to the desired destination. Its work flow like this:
- The BLE device enter the communication range of Bluetooth gateway(usually have stronger receiving sensitivity to receive signals from BLE devices) and connect with the gateway to transmit the data;
- The BLE moduleof the BLE WiFi gateway will receive the data and relay it to the WiFi module via the serial port;
- The WiFi module of the BLE WiFi gateway will upload the data to the designated server through the network router;
- The server calculate and analyze the data of BLE devices and display the outcome on the fron-end console. The users can make decisions and issue commands. The command will then be passed back to the BLE WiFi gateway;
- The BLE WiFi gateway transmits the commands to the Bluetooth device for control.
What is the difference between BLE and WiFi?
Bluetooth and WiFi are two important players in the IoT field and both of them have their own advantages. WiFi is more widely available and has a faster data transfer rate, making it possible to control devices remotely and send huge volumes of data rapidly. In contrast, Bluetooth Low Energy technology offers significant advantages in terms of low-power and long-term functioning. In addition, because BLE is so widely used, BLE hardware is more affordable to buy, update, and maintain. For more Bluetooth vs WiFi, welcome to read our related post.
The benefits of both BLE and WiFi are combined within the BLE WiFi gateway, which can be used for a wide range of IoT applications, including BLE asset tracking, smart apartment automation, and remote patient monitoring.
Do you have BLE to Cellular gateways?
Yes, we have a wide range of Bluetooth Cellular gateways, DSGW-340 is one of the most popular models. You can find more Cellular Gateways with various IoT connectivity options here.
I am looking for industrial Bluetooth gateways, do you have such type?
Yes, we have DSGW-010-3 Industrial Bluetooth Gateway with WiFi/LTE 4G/Ethernet Backhaul. Its wide operating temperature range (-20°C to 70°C) and robust IP66 all-weather-proof enclosure ensure that it functions properly in even the most adverse environments.
Do you have Bluetooth WiFi gateway installed Home Assistant?
Yes, we have a Home Assistant pre-installed Bluetooth Gateway. It is appropriate for home automation applications as it also features Z-Wave and Zigbee communication. It can also be applied in situations that are not at home. It was previously used by our client as LED light controllers in a plant factory. Please contact us for further information.
Do you have ESP32 BLE WiFi gateways?
Yes, we have ESP32 BLE WiFi gateway developed based on low-powered ESP32-D0WD-V3 CPU. For better Bluetooth connectivity, we add an nRF52840 Bluetooth SoC for robust BLE performance.
